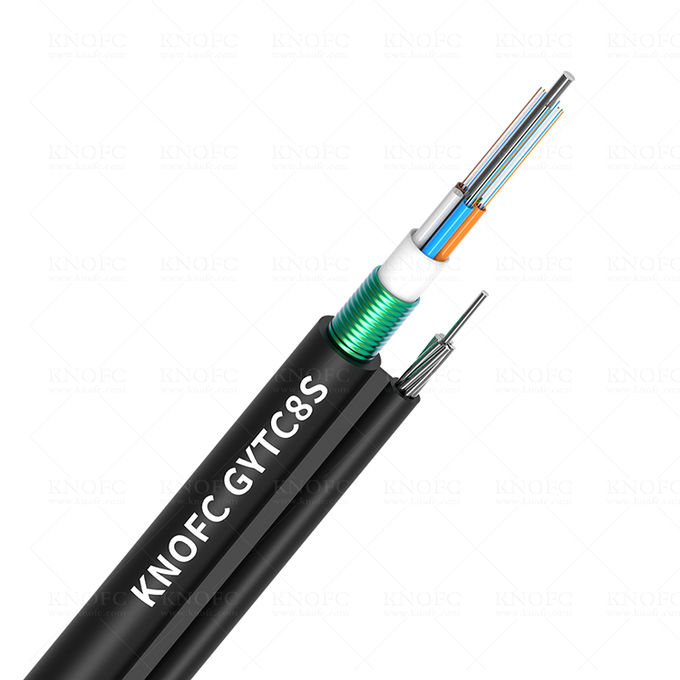

48 Core G652D GYTC8S Figure 8 Optic Fiber Cable

Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTC8S 48 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 100000M/Week

我要询价

详情介绍

Fiber Type:	G652D Or As Your Request	Fiber Brand:	YOFC / Fiberhome / Corning
Fiber Count:	2-288 Core	Central Strength Member:	Steel Wire
Protective Layer:	Corrugated Steel Tape	Outer Sheath Material:	HDPE
Installation:	Self- Supporting Aerial	Life Expectancy:	More Than 30 Years
Operating Temperature:	-40°C To+70°C	Certification:	ISO9001/CE
High Light:	GYTC8S Figure 8 Optic Fiber Cable, 48 Core G652D Fiber Optic Cable, G652D Figure 8 Optic Fiber Cable

Figure 8 cable 48 core G652D fiber optic cable GYTC8S fiber cable

Description:

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
◆ The following measures are taken to ensure the cable watertight:
➢ Steel wire used as the central strength member
➢ Loose tube filling compound
➢ 100% cable core filling
➢ PSP enhancing moisture-proof
➢ Water-blocking material

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

		G.652.D	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

Cable Mechanical Characteristic:

Cable type	Diameter (mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Crush Resistance Long/Short Term(N/100mm)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GYTC8S-2~36	8.6*15	140	600/1500	300/1000	20D/10D	-20~+70
GYTC8S-38~72	10.5*16.9	190
GYTC8S-74~96	12*19	250
GYTC8S-98~120	13*20	270
GYTC8S-122~144	15*22	305
