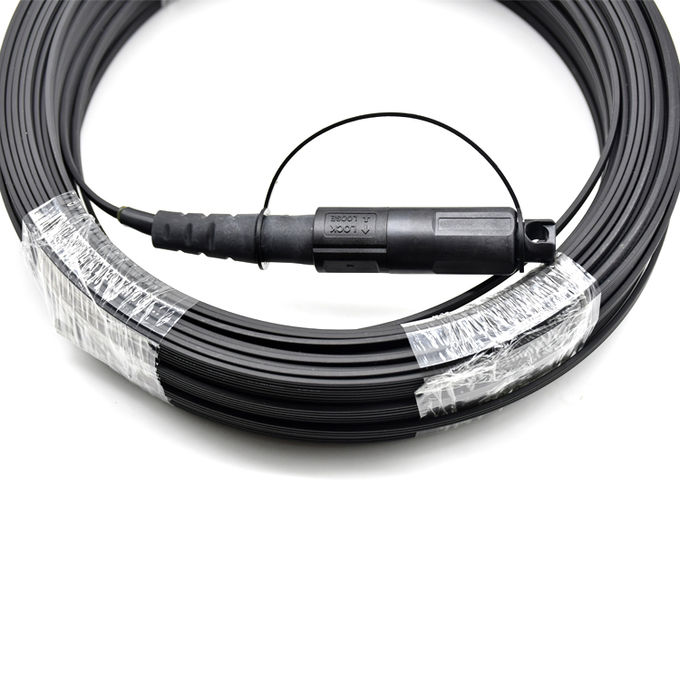

H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
  • H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
  • H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: OptiTap Compatible H Connector SC Drop Cable Pigtail
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Individual box or customized
Supply Ability: 60000pcs/Month
Connector Type: OptiTap Compatible H Connector SC Cable Type: FTTH Drop Cable
Length: 50M 100M 150M 200M Or Customized Application: OptiTap CPRI
Fiber Type: G657A2 Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning / KNOFC
Jacket Material: LSZH Operating Temperature: -40°C To+70°C
High Light: FTTH Drop Cable Assembly, SC APC Drop Cable Assembly, OptiTap CPRI Optic Cable Assembly
1 Fiber Fiber Optic H connector MINI IP SC APC OptiTap to SC/APC FTTH drop Cable Assembly



Corning Optitap/H connector fiber optic patch cable provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.



  • Available in multiple fiber lengths to meet all your FTTX design drop deployment.
  • Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
  • Designed to reduce the cost and time of drop fiber deployment in the network.
  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Can be installs without special tooling.
  • 100% tested assemblies built in a controlled environment.
  • Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
  • Flexibility and reliability provides fast and simple deployments within a network.
  • Provides bend protection for installation and long term use.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.



  • Multi-purpose Outdoor.
  • For connection between distribution box and RRH.
  • Deployment in Remote.


Dimensional Diagrams:

H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI 0



Connector technical data:

 Items  Values
 Connector Type  OptiTap compatible H connector SC
 Insertion Loss  <0.3dB
 Return Loss  >60dB


Cable technical data:

 Item  Values
 Cable Type  Outdoor FTTH Drop Cable
 Sheath Material  LSZH
 Messenger Wire  1.0±0.02mm
 Steel Wire  0.5±0.02mm
 Fiber Type  G657A1 / G657A2
 Cable Diameter  (2.0±0.1)x(5.0±0.2)mm


Cable Paremeters:

 Cable type  Diameter(mm)   Weight
  Tensile strength
   Long/short term
  Bending radius
 Storage temperature
            ( ℃ )
 GJYXCH-1~4    2.0*5.0mm     22         300/600       20D/10D          -20~+70


H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI 1
