100M Waterproof Connector Mini SC APC Drop Fiber Optic Cable Pigtail
  • 100M Waterproof Connector Mini SC APC Drop Fiber Optic Cable Pigtail
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: Mini SC/APC Round Cable Pigtail
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: plastic bag or wooden reel
Supply Ability: 5000pcs/Week
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Connector Type: Huawei Mini SC/APC Cable Type: Drop Cable / Round Cable
Cable OD: 5.0mm*2.0mm / 5.0mm Jacket Material: HDPE / LSZH / TPU
Application: FTTX Cable Length: 100M Or As Your Request
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: 100M SC APC Pigtail, SC APC Drop Fiber Optic Cable Pigtail, 100M Drop Fiber Optic Cable Pigtail

Waterproof Connector Mini SC APC Drop Cable Assembly Pigtail 100M



Huawei Compatible Mini SC pre-terminated OSP 2.0x5.0mm Outdoor Flat drop cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.



1. Provides superior weather resistance for FTTA and other outdoor applications.
2. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
3. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
4. Can be installs without special tooling.
5. Threaded style coupling.
6. Provides bend protection for installation and long term use.
7. Faster network roll out and customer installations.
8. 100% tested assemblies built in a controlled environment.
9. Lower cost deployment by utilizing plug and play solutions.
10. Custom built solutions with quick turnaround times.


Connector Technical Data:

Type Reference Note
SC IEC 61754-4 Single mode Simplex APC: Green connectors


Item Values
Connector Type Huawei Mini SC/APC
Insertion Loss <0.3dB
Return Loss >60dB

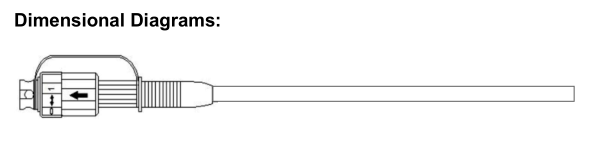

100M Waterproof Connector Mini SC APC Drop Fiber Optic Cable Pigtail 0

Cable Technical Data:

Item Values
Cable Type Outdoor Flat Drop Cable
Sheath Material LSZH
Messenger Wire 1.2±0.02mm
Steel Wire 0.5±0.02mm
Fiber Type G657A1/G657A2
Cable Diameter (2.0±0.1)x(5.0±0.2)mm


Cable Paremeters:

Cable count Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)
Storage temperature    ( ℃ )
Drop cable 1C 2.0x5.0mm 22 300/600 1000/2200 20D/10D -40~+70



1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communication equipment connection.
3. Waterproof Fiber Equipment.
4. Remote wireless Base Station.
5. FTTx ISP Project.

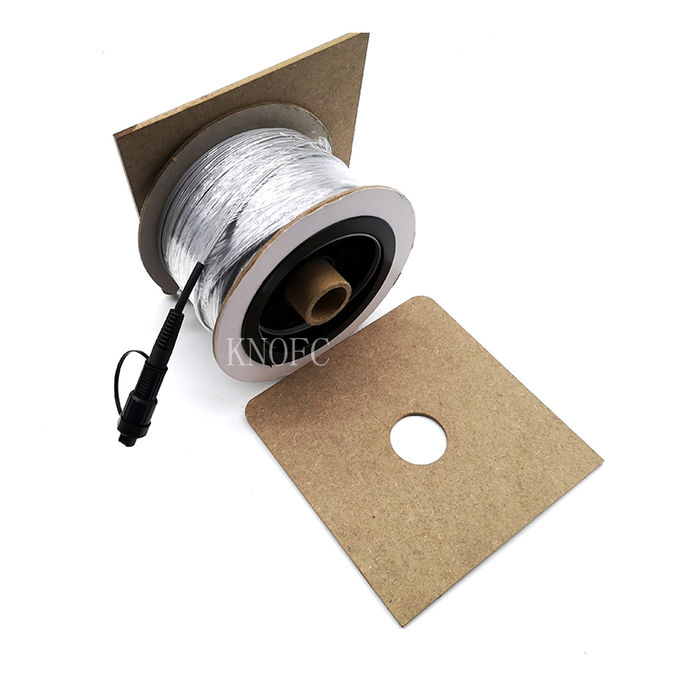

100M Waterproof Connector Mini SC APC Drop Fiber Optic Cable Pigtail 1
