12 Hilos Span 120M Self Supporting Aerial ADSS Fiber Cable

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: ADSS 12 core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden Drum
Supply Ability: 500000M/Week

我要询价

详情介绍

Product Name:	ADSS Fiber Cable 12 Core	Fiber Type:	Singlemode/Multimode
Fiber Count:	2-288cores	Jacket Material:	HDPE Or AT
Supporting Strength:	Aramid Yarn/Kevlar Yarn	Central Strength Member:	FRP
Span:	50-1000M	Application:	Self-Support Aerial
High Light:	12 Hilos ADSS Fiber Cable, Span 120M ADSS Fiber Cable, Span 120M Self Supporting Aerial Cable

Self-supporting Aerial Fibra Optica ADSS 12 Hilos Span 120M

Description:

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) sheath.

Characteristics:

Can be installed without shutting off the power
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
Large span lengths and the largest span is over 1000m
Good performance of tensile strength and temperature

Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

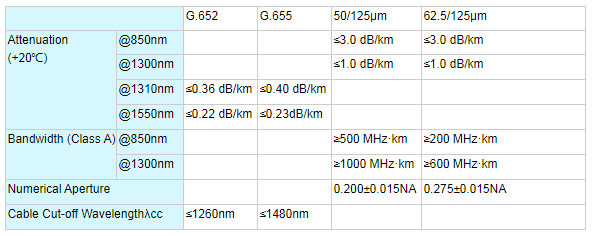

Optical Fiber Characteristic:

12 Hilos Span 120M Self Supporting Aerial ADSS Fiber Cable 0

Cable Mechanical Characteristic:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
ADSS-2~60	10.0	110	1000/3000	20D/10D	-20~+70
ADSS-62~72	12.0	120	1000/3000	20D/10D	-20~+70
ADSS-74~96	14.0	130	1000/3000	20D/10D	-20~+70
ADSS-98~144	16.0	185	1000/3000	20D/10D	-20~+70
ADSS-146~288	20.0	298	1000/3000	20D/10D	-20~+70

12 Hilos Span 120M Self Supporting Aerial ADSS Fiber Cable 1
