Fiber Optic Splice Closure
Current location:Home   >>  Products   >>  Fiber Optic Splitter   >>  Fiber Optic Splice Closure
144 Core Underground Inline Cable Fiber Optic Splice Closure
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Dome Joint Closure 144 C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box
Supply Ability: 1000pcs/week
Size: 21*21*4.5 Cm Inlet & Outlet: 3+1 Oval Ports
Installation Way: Pole / Wall Mount Sealing Way: Heat Shrink Sealing
Type: Horizontal Material: 100% PC
High Light: 144 Core Fiber Optic Splice Closure, Underground Fiber Optic Splice Closure, 144 Core Joint Closure Box

Underground Inline Fiber Optic Cable Splice Joint Closure Box 144 Core



These fiber optic splice closure can be used in underground, aerial, and wall-mounting applications. The open typed box is made from the high-quality pc and with the mechanical sealing structure filled with the sealing material. Besides, the external component and fastening piece are all made from the high-quality stainless steel. It can be opened after sealing and can be reused after renewing the sealing material.



  • Slide-in-lock design, over 90 opening angle tray
  • Elastic integrated seal ensure tightening fit
  • Housing provide fire resistant, waterproof, and quakeproof for splices while handing
  • Operating Temperature: -40 ~ +65 °C



  • Sutable for bunchy fibers.
  • Aerial ,wall-mounting.
  • FTTH optical fiber distribution.



Product NameFiber optic splice closure
Coresbunchy 60cores,ribbon 96-144cores
Protection classIP68
SealsMechanical seal
Cable out of the tube configurationUp to four out of the tube fiber optic cable
Ports diameter(mm)16~22mm
Fiber radius of curvature(mm)30
Dielectric strength(kv)1.5
Ambient temperature(°C)-40~+60
Atmospheric pressure(Kpa)70~1106
Tensile strength(N)>1000
Anti-stress>2000N/ 10cm2 Stress,Time 1min
Insulation Resistance>2X10MΩ/500V(DC)
Compressive strength15KV(DC)/1min. No breakdown.No flashover
Housing dimensions(mm)425*163.5*87mm(L*W*H)
Splice TrayMax 3 pcs, 24 cores each
ScopePole, buried, manholes, wall
Total weight1.46kg/1pcs

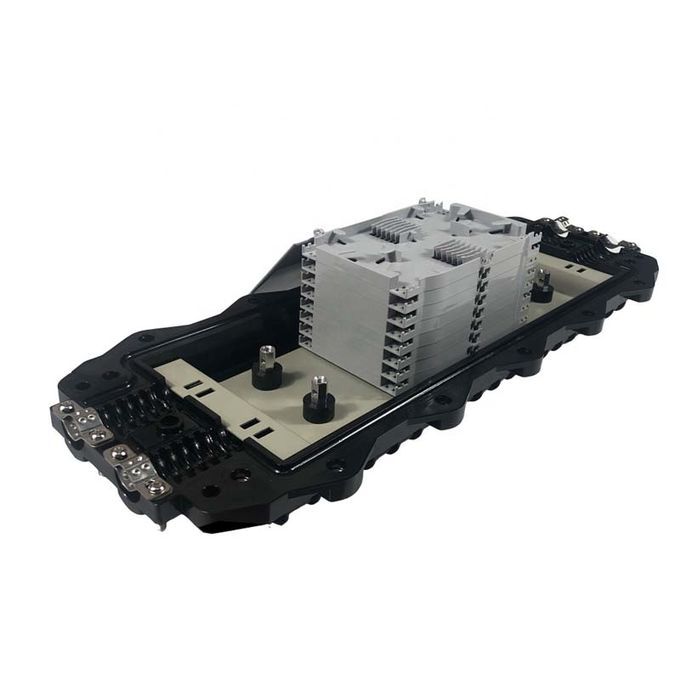

144 Core Underground Inline Cable Fiber Optic Splice Closure 0

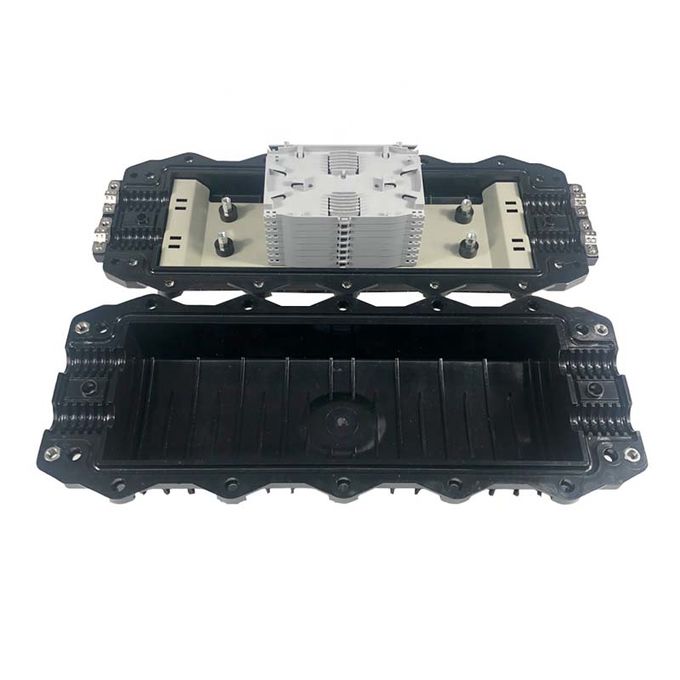

144 Core Underground Inline Cable Fiber Optic Splice Closure 1
