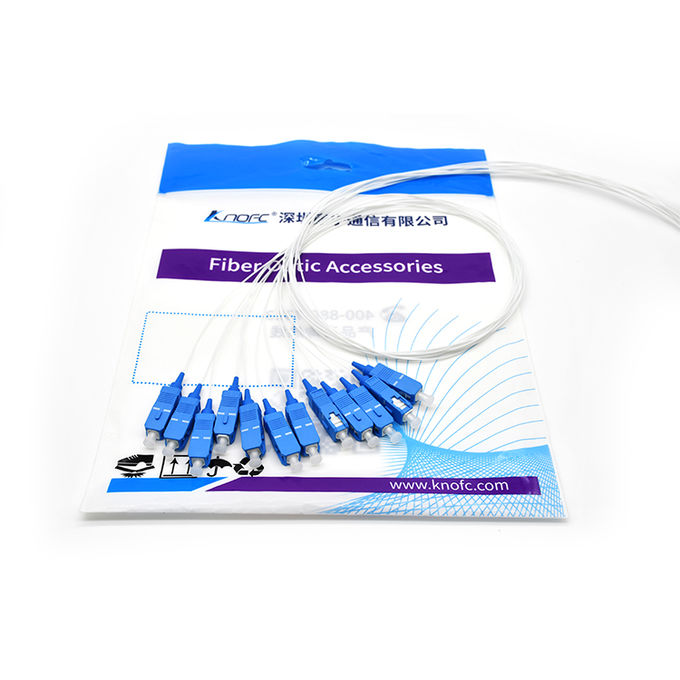

1M 0.9mm Simplex SC UPC Single Mode Fiber Optic Pigtail
  • 1M 0.9mm Simplex SC UPC Single Mode Fiber Optic Pigtail
  • 1M 0.9mm Simplex SC UPC Single Mode Fiber Optic Pigtail
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Pigtail SC/UPC
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: bag
Supply Ability: 20000pcs/Week
Fiber Type: Single Mode 9/125 Connector Type: SC/UPC
Length: 1M Or Customized Cable Color: White Or Yellow
Cable Diameter: 0.9mm Insertion Loss: ≤0.3dB
Operating Temperature: -20°C To+50°C
High Light: 1M 0.9mm SC UPC Pigtail, 0.9mm Single Mode Fiber Optic Pigtail, SC UPC Single Mode Fiber Optic Pigtail

Fiber Optic Pigtail SC/UPC 1M 0.9mm Singlemode Simplex



The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.



  • Good durability.
  • Good exchangeability.
  • High temperature stability.
  • Low insertion loss and back reflection loss.
  • Superior Quality Standard PC/UPC/APC Polishin.



  • FTTH, LAN, Test equipment, Military industry.
  • Outside plant.
  • Premise networks.
  • Aerial distribution.
  • Measuring equipments.
  • Fiber optic communication system.
  • Optical active component and equipment.


 Parameters  Standard Fiber Cable Assemblies
 Fiber Type  SM(G.652/G.657)  MM(OM1/OM2/OM3/OM4/OM5)
 Jacket Materials  LSZH/OFNR/PVC
 Connector Type  FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
 Ferrule Materials  Ceramic
 Testing Wavelengths  1310±30/1550±30nm  850±30/1300±30nm
 Insertion Loss (dB)  ≤0.25dB  ≤0.3dB
 TIA/EIA-455-107  (PC/UPC/APC)  (PC/UPC)
 Return Loss (dB)  ≥50dB(PC/UPC)  ≥40dB(PC/UPC)
 TIA/EIA-455-107  ≥60dB(APC)
 Exchange-ability  ≤0.2dB
 Cable Assemblies  Pigtail/Simplex/Duplex/Fan-out Patch cord
 Operating Temperature(℃)  -30 ~ +70
 Storage Temperature(℃)  -40 ~ +85
 Package  1 pieces/bag

1M 0.9mm Simplex SC UPC Single Mode Fiber Optic Pigtail 0
