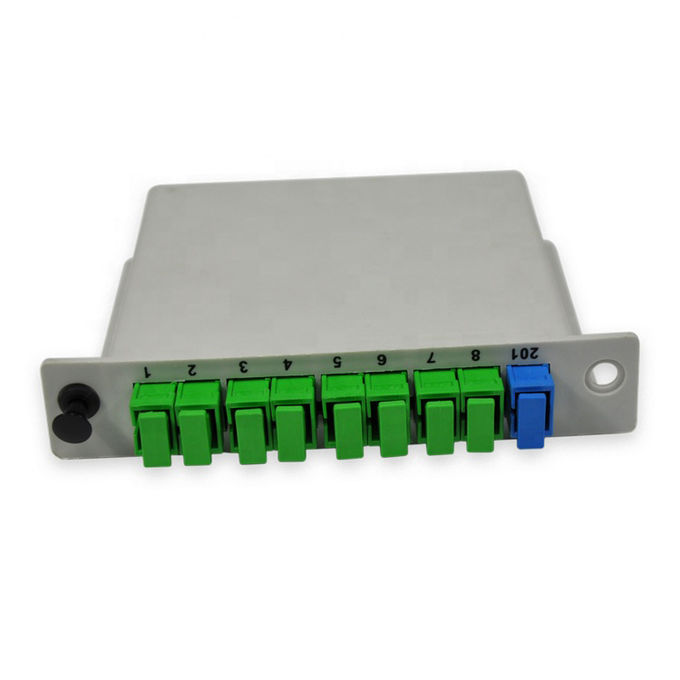

1x8 PLC Splitter SC APC Connectors Fiber Optic Cassette

Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: PLC Splitter 1*8 SC/UPC
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic boxes
Supply Ability: 10000/week

我要询价

详情介绍

Connector Type:	UPC/APC	Fiber Type:	G652D Or G657A
Splitter Type:	Mini Steel Tube	Packaging:	Plastic Boxes
Quality:	100% Pass Test	Application:	FTTx Solutions
Operating Wavelength:	1260nm-1650nm	Opeating Temperature:	-30°C To+60°
High Light:	SC APC 1x8 PLC Splitter, 1x8 Fiber Optic Cassette, SC APC Fiber Optic Cassette

1X8 Optical Fiber Splitter SC APC Connectors Cassette Type

Description:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features:

Low insertion loss.
High isolation.
Low Polarization Dependence Loss.
Compact and exquisite design.
Good channel consistency.
Wide working wavelength range.
High reliability and stability.

Application:

FTTX Systems.
PON Networks.
CATV Links.
Optical Signal Distribution.

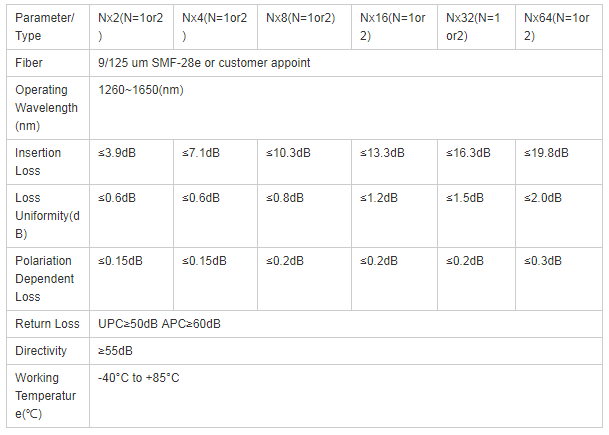

Product test report:

1. The product test report will be attached to the product. The product test report must include the following contents:
2. Insertion loss (room temperature value).
3. Return Loss (room temperature value).
4. Loss Uniformity (room temperature value).
5. Polarization Dependent Loss (room temperature value).
6. Loss Uniformity (room temperature value).

1x8 PLC Splitter SC APC Connectors Fiber Optic Cassette 0

Dispersion Diagram:
