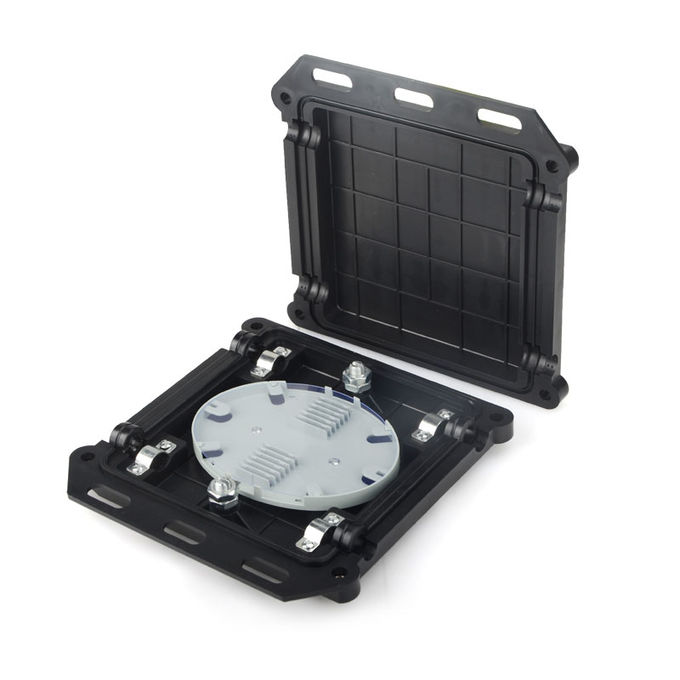

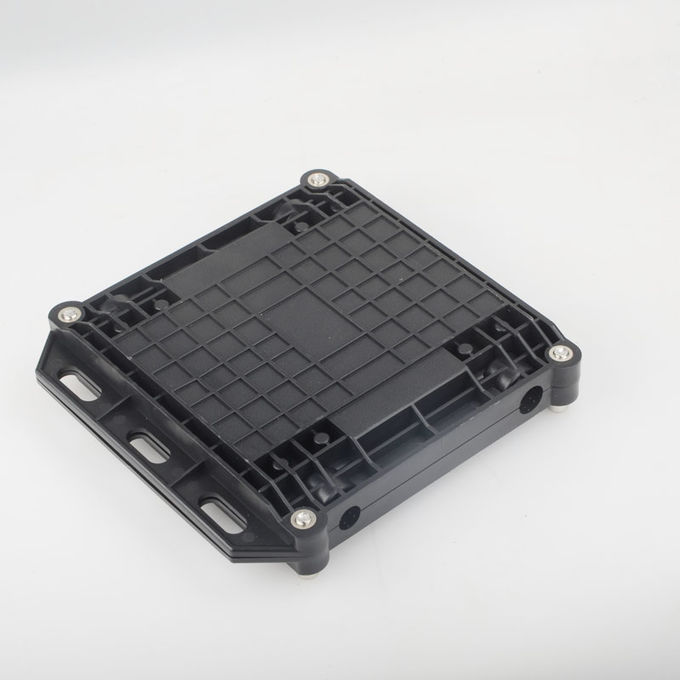

2 In Out Ftth Mini Square 12 Core Gjs 04 5C Fiber Optic Splice Closure
<
  • 2 In Out Ftth Mini Square 12 Core Gjs 04 5C Fiber Optic Splice Closure
  • 2 In Out Ftth Mini Square 12 Core Gjs 04 5C Fiber Optic Splice Closure
>
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Dome Joint Closure 12 C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box
Supply Ability: 1000pcs/week
详情介绍
Size: 21*21*4.5 Cm Inlet & Outlet: 3+1 Oval Ports
Installation Way: Pole / Wall Mount Sealing Way: Heat Shrink Sealing
Type: Horizontal Material: 100% PC
High Light: 12 Core Fiber Optic Splice Closure, Gjs 04 5C Fiber Optic Splice Closure, 12 Core Ftth Optical Fiber Joint Box

Ftth Mini Square Gjs(04)5C Fiber Optic Joint Splice Closure 12 Core 2 In Out



Description:

Fiber Optical Splice Closure is horizontal with 2 inlet and 2 outlet(4 ports), I's mini size can save much space.The outer shell is made of enhanced PC +ABS engineering plastic, it’s strong and light, can efficaciously prevent the lighting strike, erosion, aging and fire resist, the tray is pulldown, so it’s easy installation, don’t need dismantle other tray, the material of the sealing is silica gel, it can repeatable operation.It is designed especailly for FTTH project.



Features:

1, Aging resistance: with good stability of heat, thermal radiation, air, ozone and so on
2, Corrosion resistance: strong resistance against acid, salt, oxidants and so on
3, Sealing Technology: The reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance
4, Close device: no need special tools for easy installation and re open
5, Grouping function: 2 inlet 2 outlet at 2 sides can meet most requirements
6, Splice tray: using cascading structure, no need to take other splice tray when do operation



Application:

  • Sutable for bunchy fibers.
  • Aerial ,wall-mounting.
  • FTTH optical fiber distribution.



Specification:

ITEM DESCRIPTION
Material PC
Dimension(mm) 210*205*50
Weight(kg) 1
Max. diameter of cable (mm) 16
Cable ports 4
Max. capacity 12 core
Single tray 12 core



2 In Out Ftth Mini Square 12 Core Gjs 04 5C Fiber Optic Splice Closure 0

2 In Out Ftth Mini Square 12 Core Gjs 04 5C Fiber Optic Splice Closure 1
