MTP MPO Patch Cord
Current location:Home   >>  Products   >>  Fiber Optic Jumper   >>  MTP MPO Patch Cord

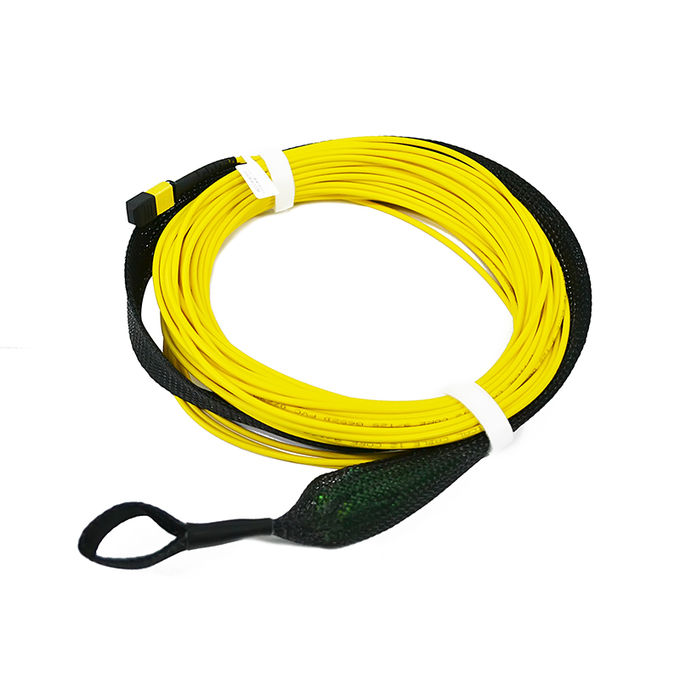

24 Core MPO-LC Duplex 3.0mm SM Fiber Breakout Cable
  • 24 Core MPO-LC Duplex 3.0mm SM Fiber Breakout Cable
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: MPO-MPO 24F SM
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: bag or customized
Fiber Count: 24 Cores Fiber Type: SM/OM1/OM2/OM3/OM4/OM5
Quality: 100% Pass Test Application: FTTX
Jacket Material: LSZH, PVC, OFNR, OFNP Fiber Brand: YOFC/ Fiber Home/ Corning/ KNOFC
Cable Length: 1M Or Customized Operating Temperature: -30°C To+60°C
High Light: 3.0mm SM Fiber Breakout Cable, 24 Core Fiber Breakout Cable, Duplex MPO to LC Breakout Cable

24 Cores Patch Cord MPO-LC Duplex 3.0mm SM Break-Out Cable



MPO/MTP patch cord are designed to high density multi fibers solutions,fit for different installation environment and easy to in-stall between the trunk line,data centers and buildings.Our patch cord are 100% factory tested and can meet your special requirements.All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.



  • High performance in IL&RL 100% pre-terminated tested.
  • Supports 40G and 100G network applications.
  • Jacket material: LSZH, OFNR, OFNP available.
  • Jacket color: Aqua,Yellow or customize.
  • Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.


  • Active dvice termination
  • Telecommunication networks
  • Metro
  • Local Area Networks(LANs)
  • Data Processing networks
  • Test Equipment
  • Premise installations
  • Wide Area Networks(WANs)

 Connector Requirements:

Standard Elite
 Connector  Mode  Endface  IL(max)(dB)  RL(max)(dB)  IL(max)(dB)  RL(max)(dB)
 SM  PC  ≤0.75  ≥45  ≤0.35  ≥50
 MPO/MTP  APC  ≤0.75  ≥60  ≤0.35  ≥60
 MM  PC  ≤0.70  ≥25  ≤0.35  ≥25

24 Core MPO-LC Duplex 3.0mm SM Fiber Breakout Cable 0
