4 Core G657A 900um Tight Buffer Figure 8 Aerial Drop Cable

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GYTC8H
Minimum Order Quantity: 2km
Price: Negotiable
Packaging Details: Wooden reel
Delivery Time: 8-10 working days
Supply Ability: 2000000M/Week

我要询价

详情介绍

Fiber Count:	2-12 Core	Fiber Type:	G657A
Strength Member:	Messenger Wire	Outer Sheath Material:	LSZH - Low Smoke Zero Halogen
Packaging:	Wooden Reel	Application:	FTTH
Life Expectancy:	More Than 30 Years	Operating Temperature:	-40°C To+70°C
High Light:	Figure 8 Aerial Drop Cable, G657A Figure 8 Aerial Cable, 900um Aerial Drop Cable

Figure-8 Aerial Drop Cable 4 Core G657A 900um Tight Buffer

Description:

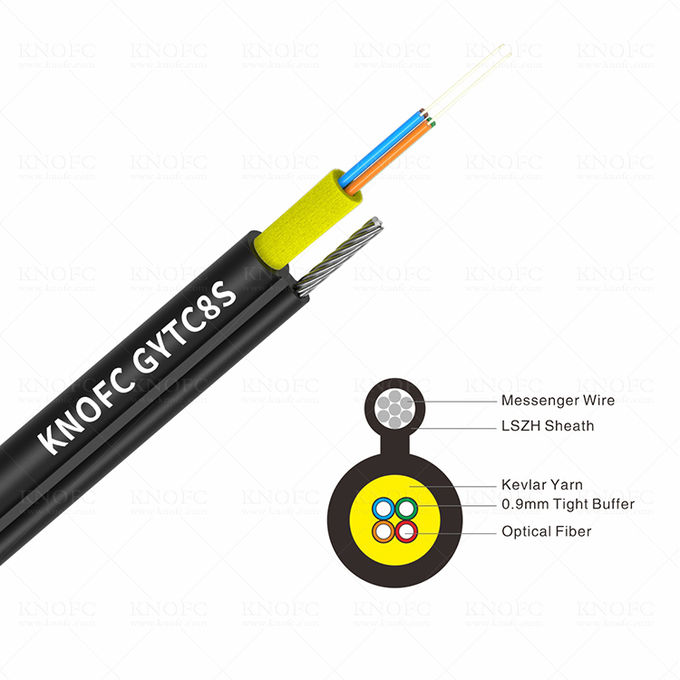

The drop cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is figure 8 made with a messenger wire strength member.

Characteristics:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. As FTTH cable,for outdoor horizontal and vertical cabling.

Technical Data:

Item	Contents	Value
Central strength member	Material	Messenger
Central strength member	Diameter	1.2mm
Outer sheath	Material	LSZH
Outer sheath	Thickness	0.5mm~0.8mm

Cable Mechanical characteristic:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJXFH-1~4	6.0*3.0	45	300/600	20D/10D	-40~+70
GJXFH-4~12	6.5*3.8	55	300/600	20D/10D	-40~+70

Main mechanical & environmental performance test:

Item	Test Method	Acceptance Condition
Tensile Strength IEC 794-1-2-E1	- Load: Short term tension - Length of cable: about 50m	- Fiber strain £ 0.15% - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage
Crush Test IEC 60794-1-2-E3	- Load: Short term crush - Load time: 1min	- Loss change £ 0.05dB@1550nm - No fiber break and no sheath damage.
Impact Test IEC 60794-1-2-E4	- Points of impact: 3 - Times of per point: 1 - Impact energy: 5J	- Loss change £ 0.1dB@1550nm - No fiber break and no sheath damage
Temperature Cycling Test YD/T901-2001-4.4.4.1	- Temperature step: +20℃→-40℃→+70℃ →+20℃ - Time per each step: 12 hrs - Number of cycle: 2	- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage.
