Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Fiber Optic Distribution Box 4 C Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: box Supply Ability: 1000pcs/week
| Fiber Count: | 4 Core | Material: | ABS New Material |
| IP Grade: | IP65 | PLC Splitter: | 1x4 |
| Installation Way: | Pole Mount Or Wall Mount | Ports: | 2 Cable Ports+16 Drop Cable Ports |
| Size: | 280x220x82mm | Application: | FTTX Network |
| High Light: | IP65 Fiber Optic Distribution Box, FTTH Fiber Optic Distribution Box, 4Core Splitter Junction Box | ||

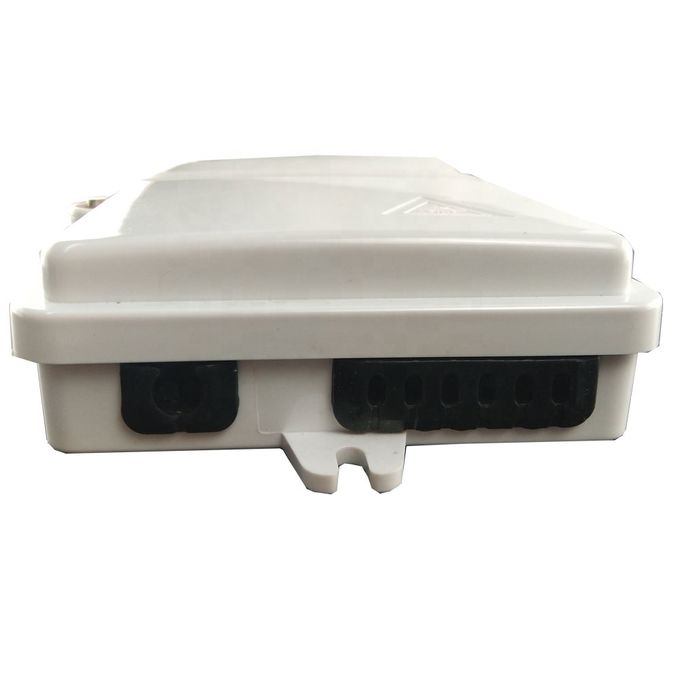

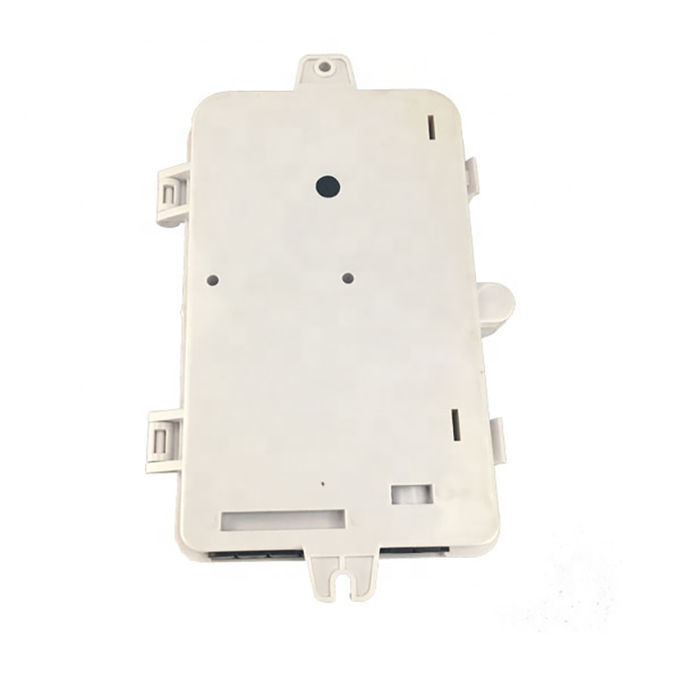

4 Core Splitter Junction Box FDB FTTH IP65 Fiber Optic Distribution Box
Description:
Fiber Optic Distribution Box can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.
6. Space saving! Double-layer design for easier installation and maintenances.
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps.
12. Lock provided for extra security.
Specification:
| ITEM | GFX-03A Fiber Optic Distribution Box |
| Dimensions(mm) | LxWxH 185*115*37mm, fiber optic distribution box |
| Weight | 0.26KG, fiber optic distribution box |
| Max.capacity | 4 cores, fiber optic distribution box |
| Operation Temperature | -40°C~+65°C, fiber optic distribution box |
| Tensile Strengh | ≥450Kg/cm², fiber optic distribution box |
| Impact Strengh | 35Kg cm/cm, fiber optic distribution box |
| 10Kg cm/cm (-30°C), fiber optic distribution box | |
| Flexural Strengh | ≥450Kg/cm², fiber op |
