Fiber Optic Splice Closure
Current location:Home   >>  Products   >>  Fiber Optic Splitter   >>  Fiber Optic Splice Closure

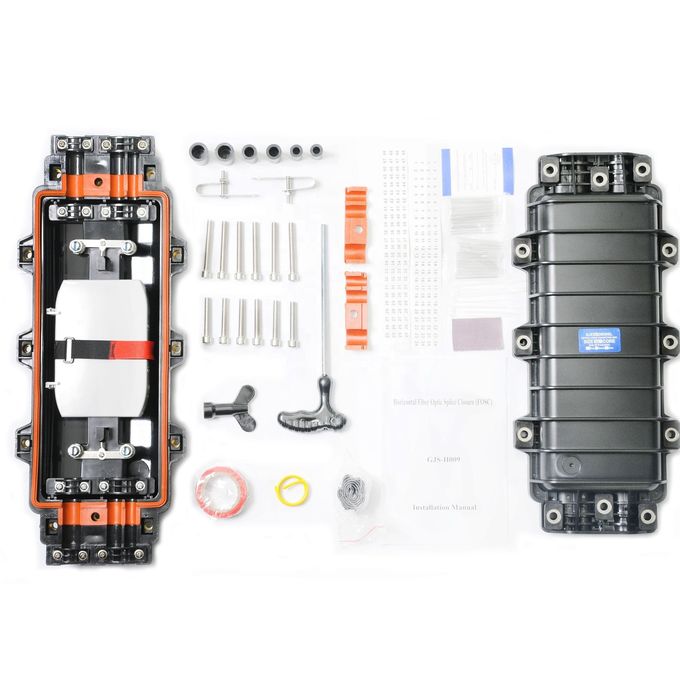

4 Trays FOSC Horizontal Fiber Optic Splice Closure
  • 4 Trays FOSC Horizontal Fiber Optic Splice Closure
  • 4 Trays FOSC Horizontal Fiber Optic Splice Closure
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Dome Joint Closure 48C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box
Supply Ability: 1000pcs/week
Size: 60cm*48.5com*49 Tray: 4 Trays, 12 Core Per Tray
Inlet & Outlet: 3+1 Oval Ports Installation Way: Pole / Wall Mount
Sealing Way: Heat Shrink Sealing Type: Horizontal
Material: 100% PC
High Light: Horizontal Fiber Optic Splice Closure, FOSC Fiber Optic Splice Closure, 4 Trays Fiber Closure Box

Horizontal Fiber Optic Splice Closure (FOSC) Fiber Optic Splice Enclosure



Dome Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, duct, or for pole mounting applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.



  • Slide-in-lock design, over 90 opening angle tray
  • Elastic integrated seal ensure tightening fit
  • Housing provide fire resistant, waterproof, and quakeproof for splices while handing
  • Operating Temperature: -40 ~ +65 °C



  • Sutable for bunchy fibers.
  • Aerial ,wall-mounting.
  • FTTH optical fiber distribution.



Outside dimension (LxWxH) 470x180x125 (mm)
Weight (excluding outside box) 2300g-2975g
Number of inlet/outlet ports 3 (pieces) on each side (total 6 pieces)
Diameter of fiber cable Φ8—Φ20 (mm)
Capacity of FOSC Bunchy: 12—96 (Cores)
Ribbon: max. 144(Cores)


4 Trays FOSC Horizontal Fiber Optic Splice Closure 0
