Aluminum Joint Box 48core USE FOR Electric Power ADSS / OPGW Solution

Description:

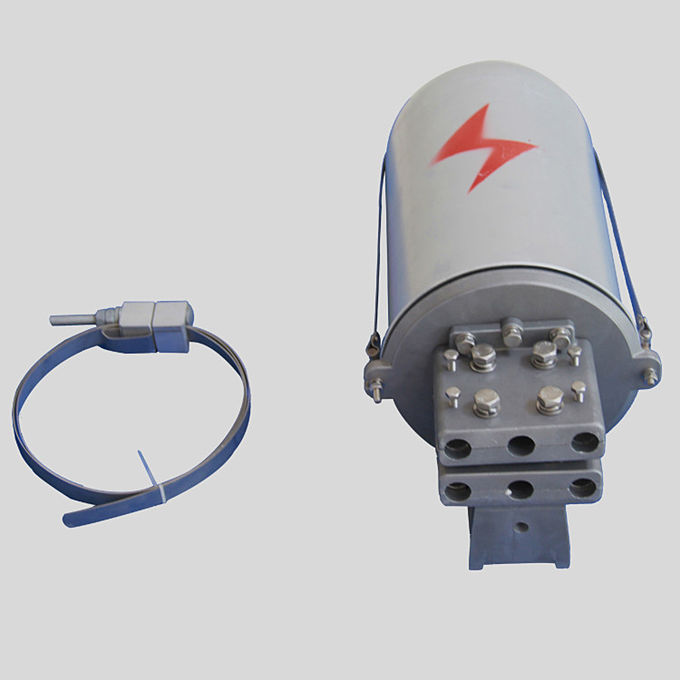

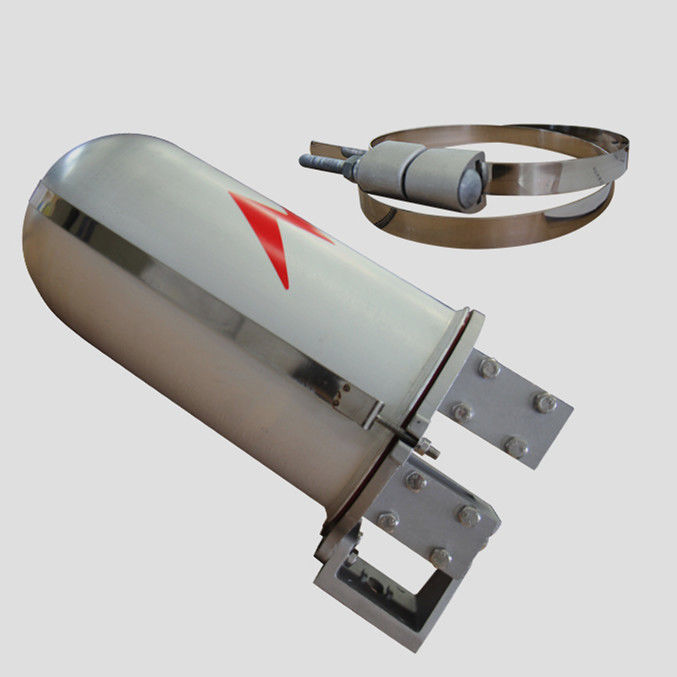

Joint Closure/Splice Closure/Joint Box is mainly used for protecting the fiber optic junction between two cables and reserve a section of fiber optic for maintenance in the box.Cable Splice Closure is sold as an assembly. A Cable Storage and Fix Clamps are needed when installed on the tower. A Cable Storage and three Stainless Steel Bands are needed when installed on the pole.

Features:

1.  Suitable for OPGW and ADSS fiber optic cable.
2.  Fully kitted with all parts for convenient operation.
3.  Overlap structure in splicing tray for easy installation.
4.  Fiber-bending radium guaranteed more than 40mm.
5.  Easy to install and re-entry with a common can wrench.
6.  Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
7.  Stand up to severe condition of moisture,vibration and extreme temperatures.

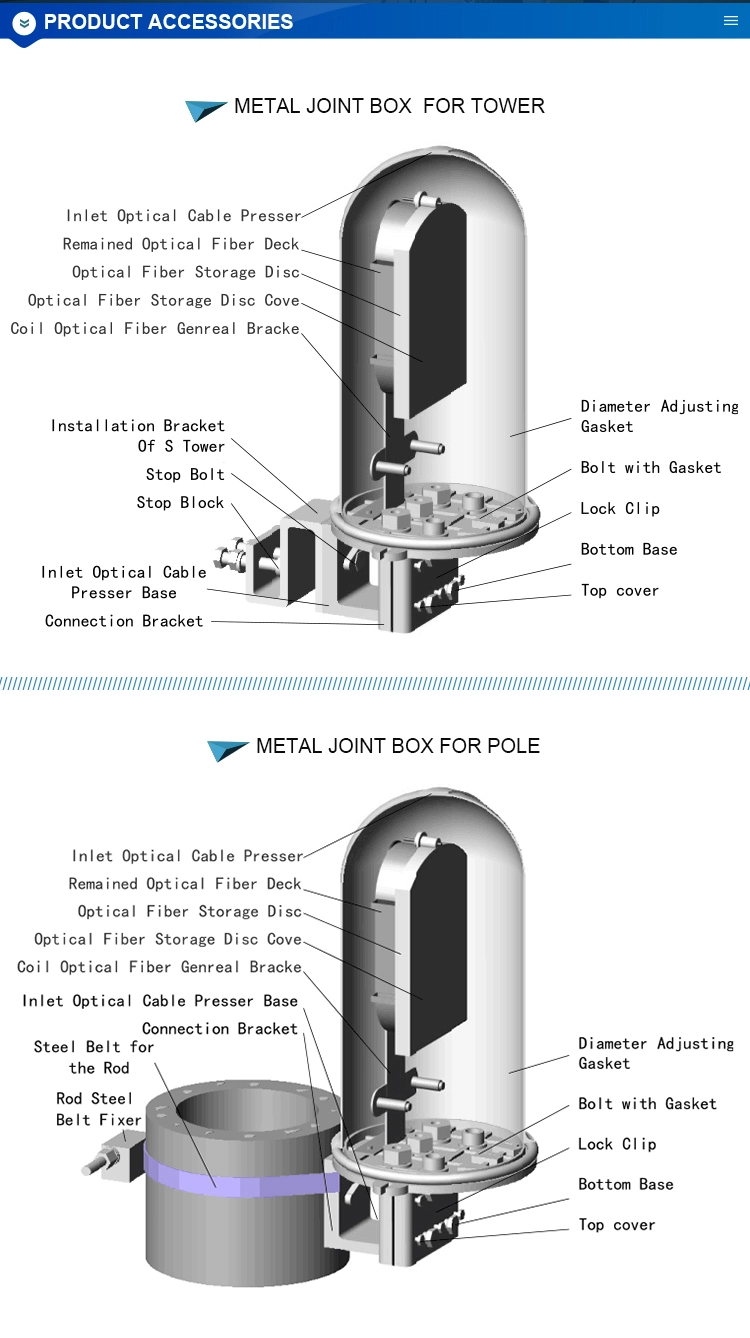

Structure and Raw Material:

1. Housing Clamp------It is made of cast aluminum alloy, which is stable, better anticorrosive in areo and mechanical performance.
2. Rubber Insert------It is made of high-class rubber, compounded for resistance to ozone, wheathering extreme high and low temperature variations and compression set.
3. Bolt, Nut, Split Washer, Lock Pin------Hot dipped galvanized.
4. Flat Washer------Electric power standards
5. Anchor Shackle------Electric power standards
6. Outer Protection Rods ------High strength aluminium alloy for wheathering extreme high and low temperature variations, compression set, water resistance and high hardness.
7. Inner Protection Rods------the same to Outer Protection Rods
8. Connection Hardware----- Anchor Shackle,Clevis Screw, UB Hang Plate,ZH Hang Plate, Electric Power standards.
