Place of Origin: China Brand Name: KNOFC Certification: ISO9001/CE Model Number: GYTA 48 Core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Wooden drum Delivery Time: 8-10 working days Supply Ability: 200000M/Week
| Fiber Type: | G652D Or As Your Request | Fiber Brand: | YOFC / Corning Or As Your Request |
| Fiber Count: | 2-288core | Strength Member: | Steel Wire |
| Strength Tape: | APL | Outer Sheath Material: | HDPE |
| Application: | Aerial / Duct / Direct Burial | Life Expectancy: | More Than 30 Years |
| Operating Temperature: | -40°C To+70°C | Certification: | ISO9001/CE |
| High Light: | 48Core GYTA Optic Fiber Cable, ISO9001 GYTA Optic Fiber Cable, Duct Fiber Optic Cable | ||
GYTA Armored 48 Core Duct Fibra Optica Single Mode Outdoor
Description:

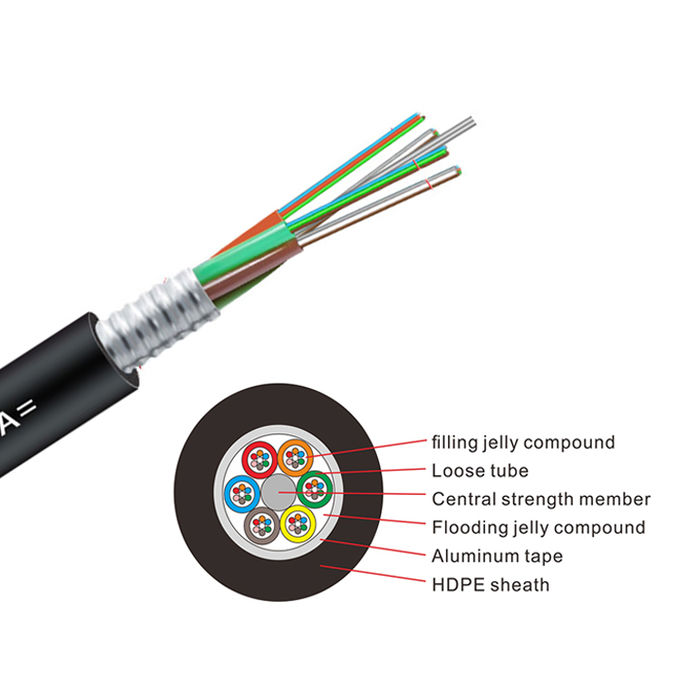

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Specially designed compact structure is good at preventing loose tubes from shrinking.
5. PE sheath protects cable from ultraviolet radiation.
6. The following measures are taken to ensure the cable watertight:
a: Steel wire used as the central strength member
b: Loose tube filling compound
c: 100% cable core filling
d: APL moisture barrier
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Optical Fiber Characteristic:
| No. of Fibers | 2-36 | 38-72 | 74-96 | 98-120 | 122-144 | 146-216 |
| Max No. of Fibers/Tube | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of Tube(+Fillers) | 6 | 6 | 8 | 10 | 12 | 18(2 layers) |
| Nominal Diameter | 10 | 11 | 12 | 13 | 14 | 16 |
| Cable Weight(kg/km) | 90 | 120 | 140 | 170 | 190 | 210 |
| Fiber Type | G.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5 | |||||
| Max .Allowable Tension | Short Term :3500N | |||||
| Long Term:100N MAT:3.5KN RTS:9.0KN | ||||||
| Wind Speed: ≤30m/s Ics:0mm | ||||||
| Min.Bend Radius (mm) | Dynamic:20D Static:10D (D: Cable diameter) | |||||
| Temperature Range | -40°C~+70°C(Transportation& Storage) | |||||
| -35°C~+65°C(Installation) | ||||||
| -40°C~+70°C(Operation) | ||||||
Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) |
Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GYTA-2~60 | 9.0 | 100 | 600/1500 | 300/1000 | 20D/10D | -20~+70 |
| GYTA-62~72 | 10 | 110 | ||||
| GYTA-74~96 | 11 | 130 | ||||
| GYTA-98~120 | 13 | 145 | ||||
| GYTA-122~144 | 15 |
195 |
