Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: GJSJV 1 Core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: wooden drum Delivery Time: 8-10 working days Supply Ability: 600000M/Week
| Fiber Type: | SM / MM | Fiber Brand: | YOFC / Fiberhome / Corning |
| Fiber Count: | 1 Core | Cable OD: | 3.0 Mm / 4.0 Mm |
| Protect Layer: | Kevlar Yarn | Jacket Material: | PVC / LSZH |
| Armored: | Spiral Steel Tube | Life Expectancy: | More Than 30 Years |
| Operating Temperature: | -40°C To+70°C | ||
| High Light: | G652D Armored Simplex Fiber Cable, 900um G652D Indoor Fiber Cable, 600um Indoor Fiber Cable | ||
GJSJV Indoor Armored Fiber Cable Simplex Fiber SM G652D G657A
Description:

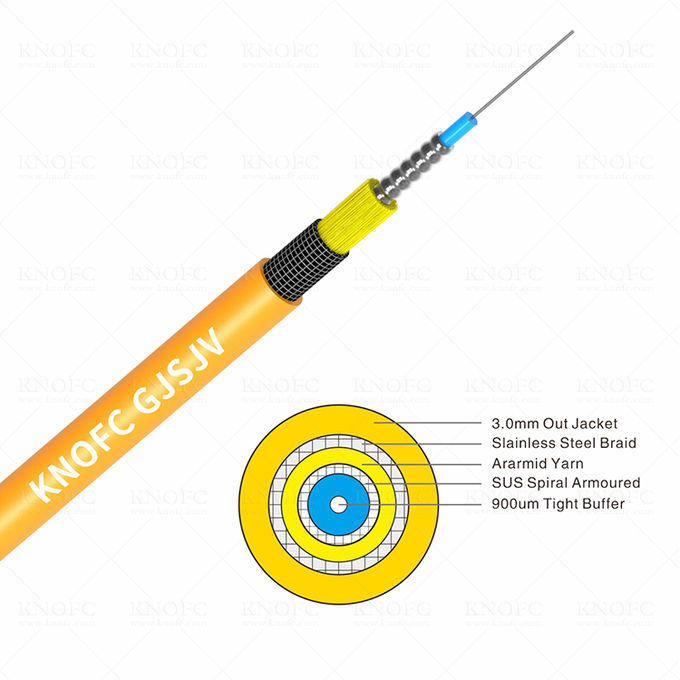

GJSJV Simplex Armored Round Cable use 600um&900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (kevlar /aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.
Features:
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.
Optical Fiber Characteristic:
| Fiber Type | G.652D,125.0+-1.0μm |
| Mode Field Diameter | 9.2+-0.2μm at 1310 nm |
| Cladding Diameter | 125+-1μm |
| Cladding Non-Circularity | <=1% |
| Coating Diameter | 245+-10μm |
| Attenuation Coefficient | <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm |
| Chromatic Dispersion | <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm |
| Zero Disperson Wavelength | 1300-1322nm |
| PMD Coefficient | <=0.2ps/√km |
Technical Parameters:
| Cable type | Diameter (mm) | Weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) |
Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GJSJV-1 | 3.0 | 15 | 80/150 | 300/1000 | 20D/10D | -40~+70 |
| GJSJV-1 | 4.0 | 19 |
Application:
1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames;
3. Used in optical connections in optical apparatus and equipments.
