72 Core Armored Fiber Cable GYTS Use on Underground Outdoor

Description:

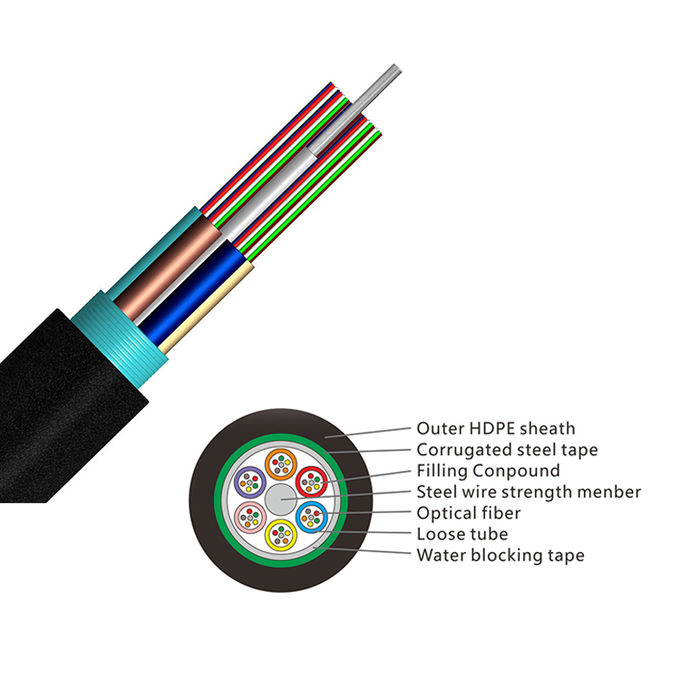

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with the HDPE sheath.

Characteristics:

• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Specially designed compact structure is good at preventing loose tubes from shrinking
• PE sheath protects cable from ultraviolet radiation

Feature:

• Steel wire used as the central strength member
• Loose tube filling compound
• 100% cable core filling
• PSP enhancing moisture-proof

Application:

1. Adopted to outdoor distribution
2. Suitable for aerial, pipeline laying method
3. Long distance and local area network communication

Optical Fiber Characteristic:

Cable Mechanical characteristic:
