Armored 96 Core Single Mode Direct Buried GYTS Optic Fiber Cable

Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTS 96 core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 300km/week

我要询价

详情介绍

Fiber Type:	SM G652D	Fiber Count:	2-288 Cores
Outer Sheath Of Material:	HDPE	Strength Member:	Steel Wire
Armored Layer:	Corrugated Steel Tape	Application:	Duct/Aerial
High Light:	Armored 96 Core Fiber Optic Cable, Single Mode GYTS Optic Fiber Cable, 96 Core Armored Optic Fiber Cable

GYTS Armored 96 Core Single Mode Fiber Optic Cable Direct Buried

Description:

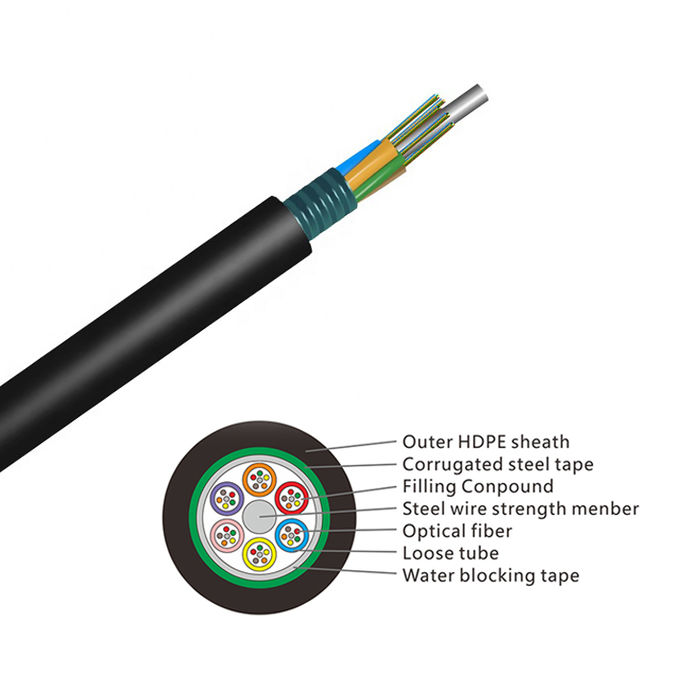

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with the HDPE sheath.

Characteristics:

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation

Cable Mechanical characteristic:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GYTS-2~60	9.5	105	600/1500	20D/10D	-20~+70
GYTS-62~72	10.5	130	600/1500	20D/10D	-20~+70
GYTS-74~96	12.0	160	600/1500	20D/10D	-20~+70
GYTS-98~120	14.0	220	600/1500	20D/10D	-20~+70
GYTS-122~144	16.0	280	600/1500	20D/10D	-20~+70
GYTS-146~288	20.0	340	600/1500	20D/10D	-20~+70

Feature:

Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof

Application:

Adopted to outdoor distribution
Suitable for aerial, pipeline laying method
Long distance and local area network communication

Main mechanical & environmental performance test:

Item	Test Method	Acceptance Condition
Tensile Strength IEC 794-1-2-E1	- Load: Short term tension - Length of cable: about 50m	- Fiber strain £ 0.15% - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage
Crush Test IEC 60794-1-2-E3	- Load: Short term crush - Load time: 1min	- Loss change £ 0.05dB@1550nm - No fiber break and no sheath damage.
Impact Test IEC 60794-1-2-E4	- Points of impact: 3 - Times of per point: 1 - Impact energy: 5J	- Loss change £ 0.1dB@1550nm - No fiber break and no sheath damage
Temperature Cycling Test YD/T901-2001-4.4.4.1	- Temperature step: +20℃→-40℃→+70℃ →+20℃ - Time per each step: 12 hrs - Number of cycle: 2	- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage.
