Optic Fiber Cable
Current location:Home   >>  Products   >>  Optic Fiber Cable   >>  Optic Fiber Cable
Armored Cable 48 Core Fiber Optic Cable G652D Fiber Cable Corrugated Steel Tape
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTS 48 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Supply Ability: 300km/week
Fiber Type: SM G652D Fiber Count: 2-288 Cores
Outer Sheath Of Material: HDPE Strength Member: Steel Wire
Armored Layer: Corrugated Steel Tape Application: Duct/Aerial

Armored Cable 48 Core Fiber Optic Cable G652D Fiber Cable Corrugated Steel Tape

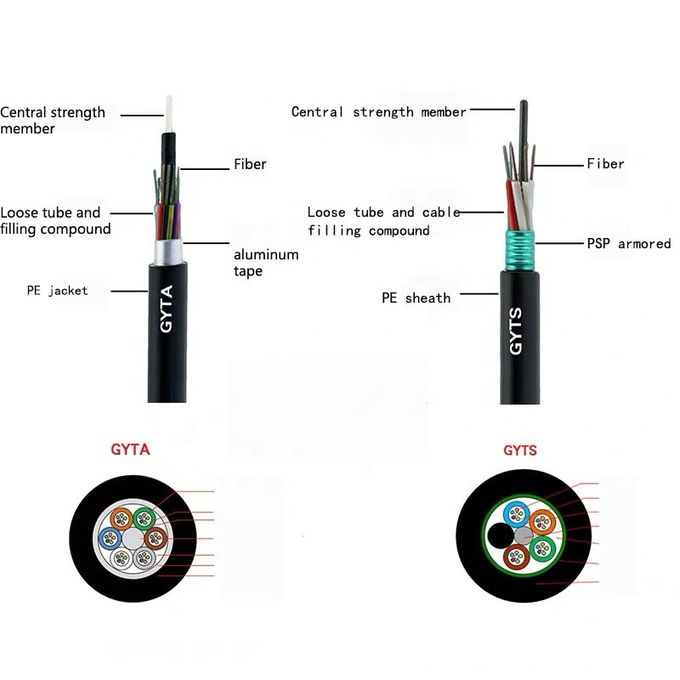

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with the HDPE sheath.



  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation


  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling
  • PSP enhancing moisture-proof


  1. Adopted to outdoor distribution
  2. Suitable for aerial, pipeline laying method
  3. Long distance and local area network communication

Cable Mechanical characteristic:

  Cable type Diameter(mm)   Weight
 Tensile strength
 Long/short term
 Bending radius
 Storage temperature
             ( ℃ )
 GYTS-2~60              9.5       105          600/1500       20D/10D             -20~+70
 GYTS-62~72             10.5       130          600/1500       20D/10D             -20~+70
 GYTS-74~96             12.0       160          600/1500       20D/10D             -20~+70
 GYTS-98~120             14.0       220          600/1500       20D/10D             -20~+70
 GYTS-122~144             16.0       280          600/1500       20D/10D             -20~+70
 GYTS-146~288             20.0       340          600/1500       20D/10D             -20~+70


Armored Cable 48 Core Fiber Optic Cable G652D Fiber Cable Corrugated Steel Tape 0
