Fiber Optic Cable Assemblies
Current location:Home   >>  Products   >>  Fiber Optic Jumper   >>  Fiber Optic Cable Assemblies
Corning OptiTap Tonable 200FT 300FT Hardened Flat Drop Fiber Cable
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number:Drop Cable with Optitap Connector
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: plastic bag or wooden reel
Supply Ability: 5000pcs/Week
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Connector Type: Optitap Connector Cable Type: Drop Cable / Round Cable
Cable OD: 5.0mm / 2.0mm*5.0mm Jacket Material: HDPE / LSZH / TPU
Application: FTTX Cable Length: 100M Or As Your Request
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: 300FT Hardened Flat Drop Fiber Cable, 200FT Hardened Flat Drop Fiber Cable, 200FT Optitap Fiber Connector

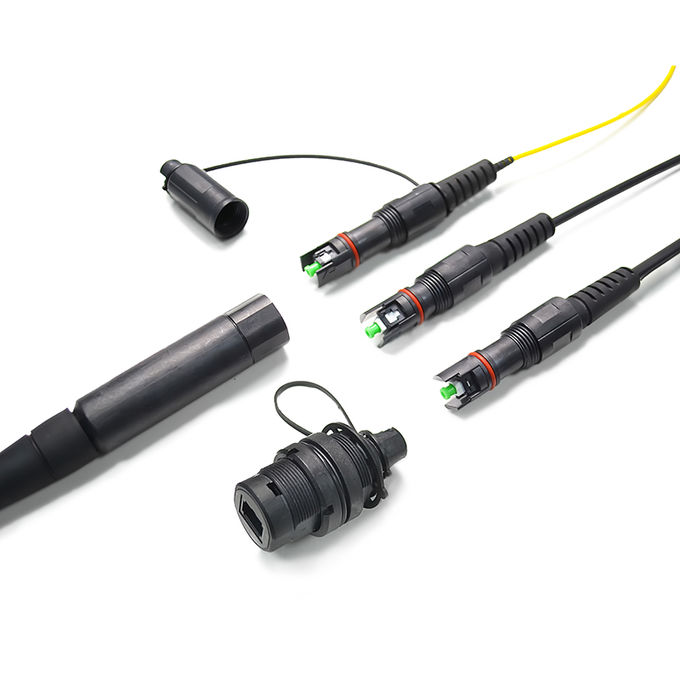

Corning OptiTap Tonable Flat Drop Cable 200FT 300FT Fiber Optic Hardened Drop Cable



OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.



1. Compatible with Corning-OptiTap and H-Connector;
2. Factory terminated for high performance;
3. Available with one or both ends connectorized;
4. Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
5. Available in dielectric or toneable;
6. Designed for aerial, direct-buried or duct installation;
7. IP-68 water and dust protection ;
8. -40℃~85℃ operating temperature;

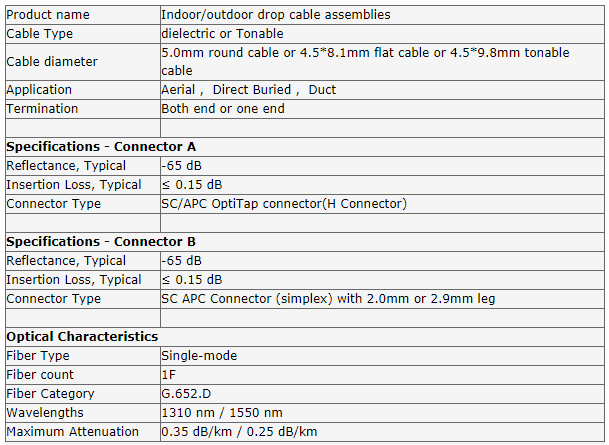

Technical Data:

Corning OptiTap Tonable 200FT 300FT Hardened Flat Drop Fiber Cable 0

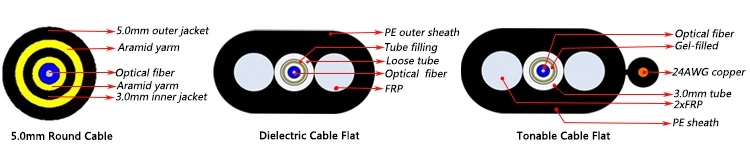

Cable Structure:

Corning OptiTap Tonable 200FT 300FT Hardened Flat Drop Fiber Cable 1


1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communication equipment connection.
3. Waterproof Fiber Equipment.
4. Remote wireless Base Station.
5. FTTx ISP Project.


Corning OptiTap Tonable 200FT 300FT Hardened Flat Drop Fiber Cable 2
