Fiber Optic Splice Closure
Current location:Home   >>  Products   >>  Fiber Optic Splitter   >>  Fiber Optic Splice Closure
Dome Type 96 144 Core Fiber Cable Joint Box Fiber Optic Splice Closure
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Dome Joint Closure 48C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box
Supply Ability: 1000pcs/week
Size: 140*115*295 Mm Tray: 4 Trays, 12 Core Per Tray
Inlet & Outlet: 1 In 4 Out Installation Way: Aerial / Duct / Buried Mount
Sealing Way: Heat Shrink Sealing Type: Dome
Material: 100% PC
High Light: 144 Core Fiber Cable Joint Box, 96Core Fiber Optic Splice Closure, 144Core Fiber Optic Splice Closure

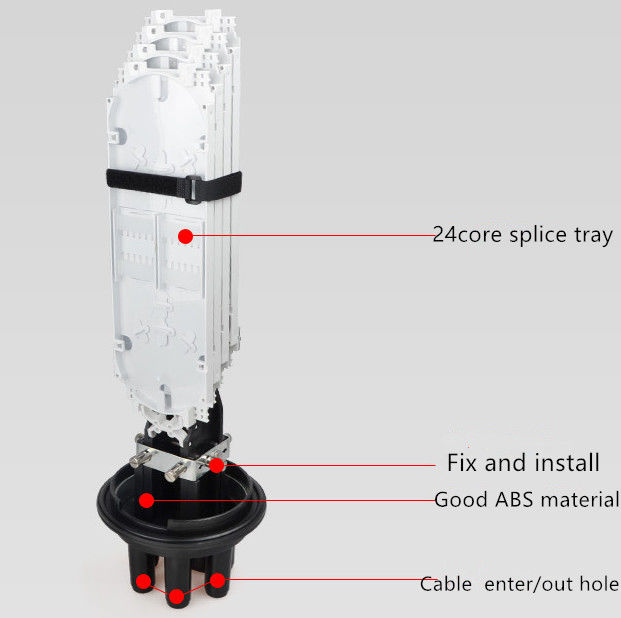

Fiber optic splice closure Dome type 96 144 core fiber cable joint box



Fiber closure is used for connecting and protecting singal core or bunch cables. It can be placed in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always aim to the R&D of communication equipment. Our fiber closures can improve the operation of your network communication system.Closure is suitable for the applications up to 96 single fibers,which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb (FTTH/FTTC).



1. The closure can be used in duct, buried, overhead..etc
2. High quality impact material.pp and internal is PP,ABS
3. Designed for ftth with adapter if need
4. Fiber storage with big basket
5. Modular fiber management system
6. Cable diameter range: 8~20 mm
7. Sealing way of cables:Mechanical seaing by silicon rubber
8. Quality warranty:2 years
9. IP rating is IP68



1.Be suitable for Aerial,Duct and Direct Buried application.
2.CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.



Technical Parameters
Cable ports4 Entires(2 on each side)
Number of fiber fusion12 (bunchy)
Splice tray cores24 (bunchy)
Max capacity of fiber96 (bunchy)
Working temperature-40℃~65℃
Insulation resistance>2×104MΩ
Opening TypeAnti-removable Screw-Type
Installation TypeAerial
Sealing structureSticky cincture


Dome Type 96 144 Core Fiber Cable Joint Box Fiber Optic Splice Closure 0
