Fan Out 12 Cores SC/APC Ribbon Patch Cord
  • Fan Out 12 Cores SC/APC Ribbon Patch Cord
  • Fan Out 12 Cores SC/APC Ribbon Patch Cord
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Pigtail SC/UPC
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: bag
Supply Ability: 20000pcs/Week
Fiber Type: Single Mode 9/125 Connector Type: SC/UPC
Length: 1M Or Customized Cable Color: White Or Yellow
Cable Diameter: 0.9mm Insertion Loss: ≤0.3dB
Operating Temperature: -20°C To+50°C
High Light: 12 Cores Ribbon Patch Cord, SC APC Ribbon Patch Cord, Fan Out SC APC Pigtail

Pigtail 12 Cores SC/APC Ribbon Pigtail Fiber Optic Fan-Out



Optical Fiber Pigtail can provide a quick and easy termination of fibers in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.Our quick connector system removes any requirements for epoxy,adhesives or costly curing ovens.All the key steps have been done in the factory to ensure every connection is excellent.



1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules



1.Access Network
2.Telecom/CATV Systems
3.Active device termination
4.Local Area Networks (LANs)
6.Test equipment
7.Data processing networks
8.Wide Area networks (WANs)



 Parameter  Unit  Mode Type  PC  UPC  APC
 Insertion Loss  dB  SM  ≤0.3  ≤0.3  ≤0.3
 Insertion Loss  dB  MM  ≤0.3  ≤0.3  -----
 Return Loss  dB  SM  ≥50  ≥50  ≥60
 Return Loss  dB  MM  ≥35  ≥35  -----
 Fiber cable  Material  PVC, LSZH
 Fiber cable  Diameter  0.9mm, 2.0mm, 3.0mm
 Connector type  SC, LC. ST. FC
 Repeatability  dB  Additional loss<0.1db,return loss< 5 dB
 Interchangeability  dB  Additional loss<0.1db,return loss< 5 dB
 Connection times  times  >1000
 Operating Temperature  ℃  -20℃- +70℃
 Storage Temperature  ℃  -20℃- +70℃

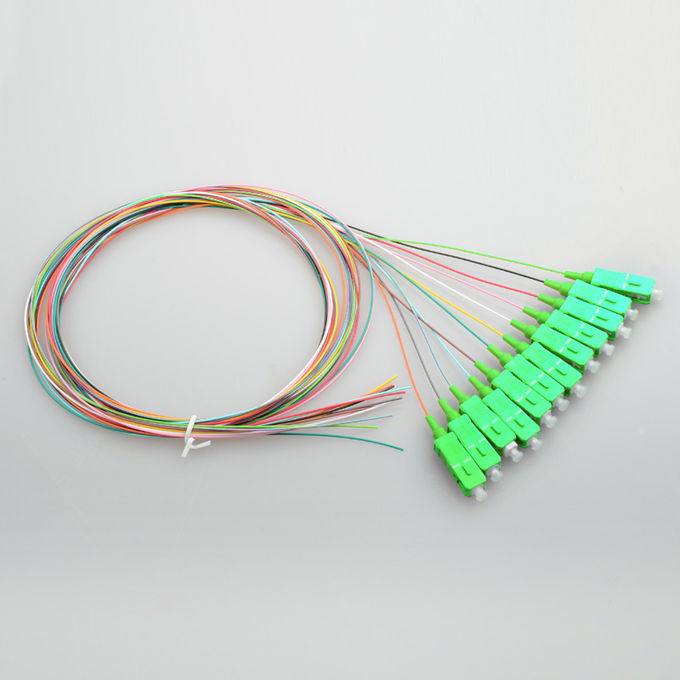

Fan Out 12 Cores SC/APC Ribbon Patch Cord 0

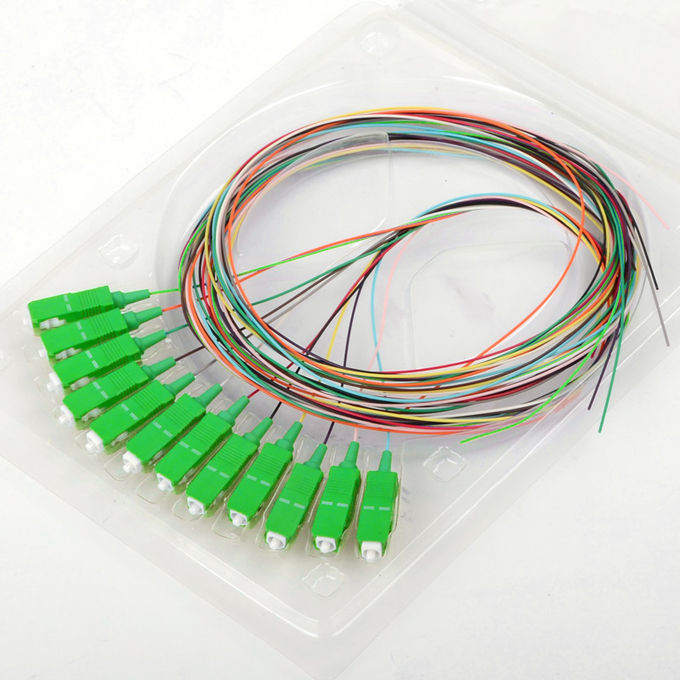

Fan Out 12 Cores SC/APC Ribbon Patch Cord 1
