H Connector SC Hardened Waterproof Patch Cable FTTA CPRI OptiTap
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: OptiTap Compatible H Connector SC Drop Cable Pigtail
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Individual box or customized
Supply Ability: 60000pcs/Month
详情介绍
Connector Type: OptiTap Compatible H Connector SC Cable Type: FTTH Drop Cable
Length: 50M 100M 150M 200M Or Customized Application: OptiTap CPRI
Fiber Type: G657A2 Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning / KNOFC
Jacket Material: HDPE / LSZH / TPU Operating Temperature: -40°C To+70°C
High Light: SC Hardened Waterproof Patch Cable, H Connector Waterproof Patch Cable, FTTA CPRI OptiTap Patch Cord

FTTA CPRI OptiTap compatible H connector SC hardened Outdoor Waterproof Patch Cable



Description:

Mini IP SC APC Connector Compatible with Corning Optitap Adapter. IP68 Outdoor waterproof field assembly fast connector is factory -terminated, it provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity and Suitable for flat drop cable,3.0mm round cable, 5.0mm round cable. the environmentally sealed and hardened connector to reduce the cost and the time of drop cable deployment in optical access networks.



Features:

  • Available in multiple fiber lengths to meet all your FTTX design drop deployment.
  • Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
  • Designed to reduce the cost and time of drop fiber deployment in the network.
  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Can be installs without special tooling.
  • 100% tested assemblies built in a controlled environment.
  • Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
  • Flexibility and reliability provides fast and simple deployments within a network.
  • Provides bend protection for installation and long term use.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.



Application:

  • Multi-purpose Outdoor.
  • For connection between distribution box and RRH.
  • Deployment in Remote.

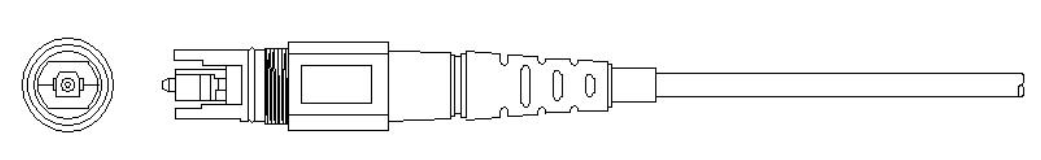

Dimensional Diagrams:

H Connector SC Hardened Waterproof Patch Cable FTTA CPRI OptiTap 0





Connector technical data:

 Items Values
 Connector Type OptiTap compatible H connector SC
 Insertion Loss <0.3dB
 Return Loss >60dB



Cable technical data:

 Item Values
 Cable Type Outdoor FTTH Drop Cable
 Sheath Material LSZH
 Messenger Wire 1.0±0.02mm
 Steel Wire 0.5±0.02mm
 Fiber Type G657A1 / G657A2
 Cable Diameter (2.0±0.1)x(5.0±0.2)mm



Cable Paremeters:

 Cable type Diameter(mm)  Weight
 (kg/km)
  Tensile strength
   Long/short term
            (N)
  Bending radius
  Dynamic/static
         (mm)
 Storage temperature
            ( ℃ )
 GJYXCH-1~4   2.0*5.0mm    22        300/600      20D/10D         -20~+70

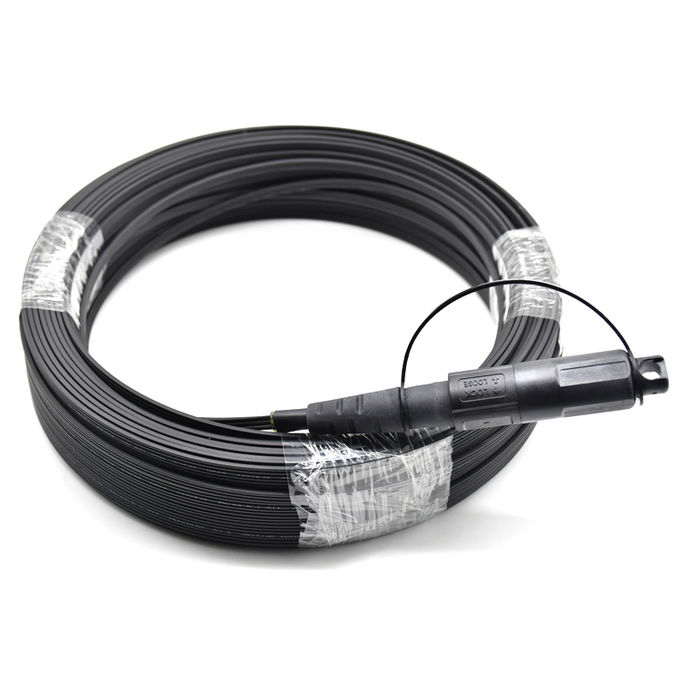

H Connector SC Hardened Waterproof Patch Cable FTTA CPRI OptiTap 1
