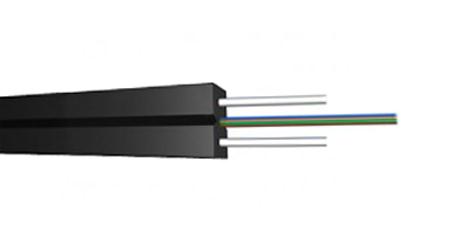

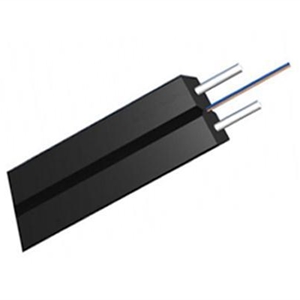

FTTH Indoor Cable
  • 所属分类:Indoor Single-Mode Optical Cable
  • 点击次数:104
  • 发布日期:2020-07-28
详情介绍

·Description

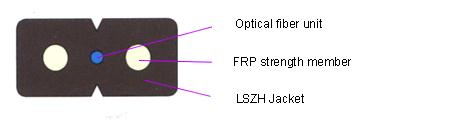

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
·Characteristics
        · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
          transmission property;
        · Two parallel FRP strength members ensure good performance of crush resistance to protect the
          fiber;
        · Simple structure, light weight and high practicability;
        · Novel flute design, easily strip and splice, simplify the installation and maintenance;
        · Low smoke, zero halogen and flame retardant sheath.
·Optical Characteristics

G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20)

@850nm

3.5 dB/km

3.5 dB/km

@1300nm

1.5 dB/km

1.5 dB/km

@1310nm

0.45 dB/km

0.50 dB/km

@1550nm

0.30 dB/km

0.50dB/km



Bandwidth (Class A)

@850nm

500 MHz·km

200 MHz·km

@1300nm

1000 MHz·km

600 MHz·km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

1260nm

1480nm

·Technical Parameters
Fiber Count Cable Diameter
mm
Cable Weight
kg/km
Tensile Strength
Long/Short Term
N
Crush Resistance
Long/Short Term
N/100mm
Bending Radius
Static
/Dynamic
mm
1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
2 (2.0±0.2)×(3.4±0.2) 8.5 30/60 300/1000 15/30
3 (2.0±0.2)×(3.8±0.2) 9 30/60 300/1000 15/30
4 (2.0±0.2)×(4.0±0.2) 10 30/60 300/1000 15/30
Storage/Operating Temperature : -20℃ to + 60℃
