Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Fusion Splice Protection Sleeves Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: Plastic bag Supply Ability: 1000pcs/week
| Fiber Count: | 1 | Type: | Insulation Sleeving |
| Length: | 40mm 45mm 60mm | Stainless Steel: | 0.5 / 0.8 / 1.0 Mm |
| Package: | 100pcs/bag | Shrinking Temperature Range: | 110℃~130℃ |
| Working Temperature: | -45 ~ 100 °C | ||
| High Light: | 60mm Heat Shrink Splice Protector, 45mm Fusion Splice Protection Sleeves Heat Shrink, 40mm Fusion Splice Protection Sleeves | ||

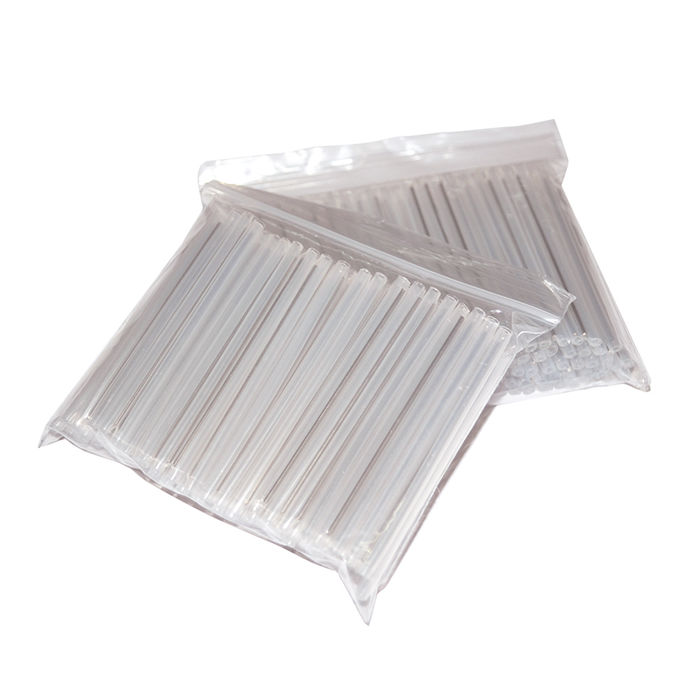

Fusion Splice Protection Sleeves Hot Heat Shrinkable Fiber Optic Splice Protectors
Description:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.
Features:
1)Outer Shrink Tube
2)Stainless Steel Rod
3)Inner Tube
4)Protection Sleeves Length: 25mm, 30mm, 35mm,40mm, 45mm , 55mm , 60mm
5)Steel needle Diameter: 0.5mm, 0.8mm, 1.0mm,1.2mm,1.5mm (Standard Single Fiber)
6)Custom lengths available
7)Color-coded outer tubes available
8)No influence on the fiber's transmission
9)Splice point protection and intensity improvement
10)Easy operation and reduction of the risk of managing fiber
11) External tube clearly showing the status of connection
12)Airproof configuration keeping the splice point's good resistance of humidity and temperature
13)Operating temperature ranging from -45℃ to 100℃
Specification:
| Model | Splice Protection Sleeves | Fusion Tubing | Steel Rod | |||
| Outer Diameter(±0.1mm) | Length | Inner Diameter | Length | Outer Diameter | Length | |
| FOST-60H | 3 | 60 | 1.3 | 60 | 1.5 | 55 |
| FOST-45H | 3 | 45 | 1.3 | 45 | 1.5 | 40 |
| FOST-40H | 3 | 40 | 1.3 | 40 | 1.5 | 35 |
| FOST-60H | 2.6 | 60 | 1.3 | 60 | 1.2 | 55 |
| FOST-45H | 2.6 | 45 | 1.3 | 45 | 1.2 | 40 |
| FOST-40H | 2.6 | 40 | 1.3 | 40 | 1.2 | 35 |
| FOST-60H | 2.4 | 60 | 1.3 | 60 | 1 | 55 |
| FOST-45H | 2.4 | 45 | 1.3 | 45 | 1 | 40 |
| FOST-40H | 2.4 | 40 | 1.3 | 40 | 1 | 35 |
