GJJV Tight Buffer 900um 0.9mm SM Fiber Optic Cable
  • GJJV Tight Buffer 900um 0.9mm SM Fiber Optic Cable
  • GJJV Tight Buffer 900um 0.9mm SM Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJJV
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: wooden drum
Delivery Time: 8-10 working days
Supply Ability: 600000M/Week
Fiber Type: SM / MM Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 1 Core Cable OD: 0.9mm / 0.6mm
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: GJJV 0.9mm SM Fiber Optic Cable, 900um SM Fiber Optic Cable, GJJV 900um Fiber Optic Cable

GJJV Tighr Buffer Fiber 900um 0.9mm SM Fiber Optic Cable

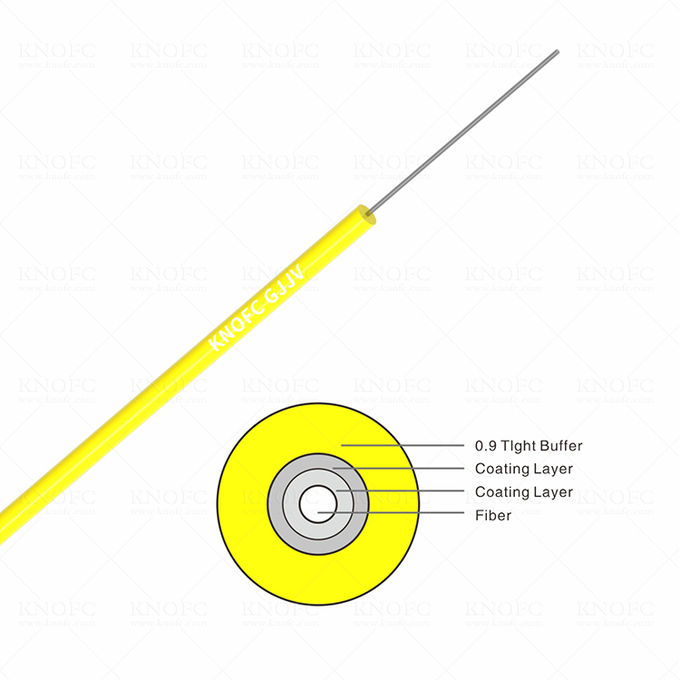

Tight buffer cable are manufactured by extruding one layer tight buffer on the coated fiber. Using the excellent quality fiber, tight buffer material and the unique equipment , precision mold and controlled by the precision diameter checking technology, the products have the good and reliable performance.



-900μm semi tight buffer fiber,aramid Yarn,flame-retardant jacket.
-Suited to SM fiber and MM fiber (50μm and 62.5μm).
-It is ideal choice of active apparatus used pigtail.
-Excellent temperature performance.
-Excellent stripping performance.


1.Optical fiber jumper or pigtail.
2.Indoor riser level and plenum level cable distribution.
3.Interconnect between instruments, communication equipment.


Optical Fiber Characteristic:

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km


Technical Parameters:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GJJV-1 0.6 1 6/3 300/1000 20D/10D -40~+70
GJJV-1 0.9 1.5

 GJJV Tight Buffer 900um 0.9mm SM Fiber Optic Cable 0
