Grey Mini SC APC Drop Fiber Pigtail Fiber Optic Cable Assemblies
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Waterproof Mini SC Drop Cable Assembly Pigtail
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Individual box or customized
Supply Ability: 600000pcs/Month
Connector Type: Huawei Mini SC Cable Type: Round Cable Or Drop Cable
Length: Customized Application: HUAWEI CPRI
Fiber Type: G657A Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Jacket Material: HDPE / LSZH / TPU Operating Temperature: -40°C To+70°C
High Light: Grey Drop Fiber Cable Pigtail, Mini Fiber Cable Pigtail, ISO9001 Mini SC APC Pigtail

Mini SC APC Drop Cable Assembly Pigtail Grey Drop Cable With Waterproof Connector



Huawei Compatible Mini SC pre-terminated OSP 2.0x5.0mm Outdoor Flat drop cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.



  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
  • Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
  • Can be installs without special tooling.
  • Threaded style coupling.
  • Provides bend protection for installation and long term use.
  • Faster network roll out and customer installations.
  • 100% tested assemblies built in a controlled environment.
  • Lower cost deployment by utilizing plug and play solutions.
  • Custom built solutions with quick turnaround times.


  • Fiber optic communications in harsh outdoor environments.
  • Outdoor communication equipment connection.
  • Waterproof Fiber Equipment.
  • Remote wireless Base Station.
  • FTTx ISP Project.

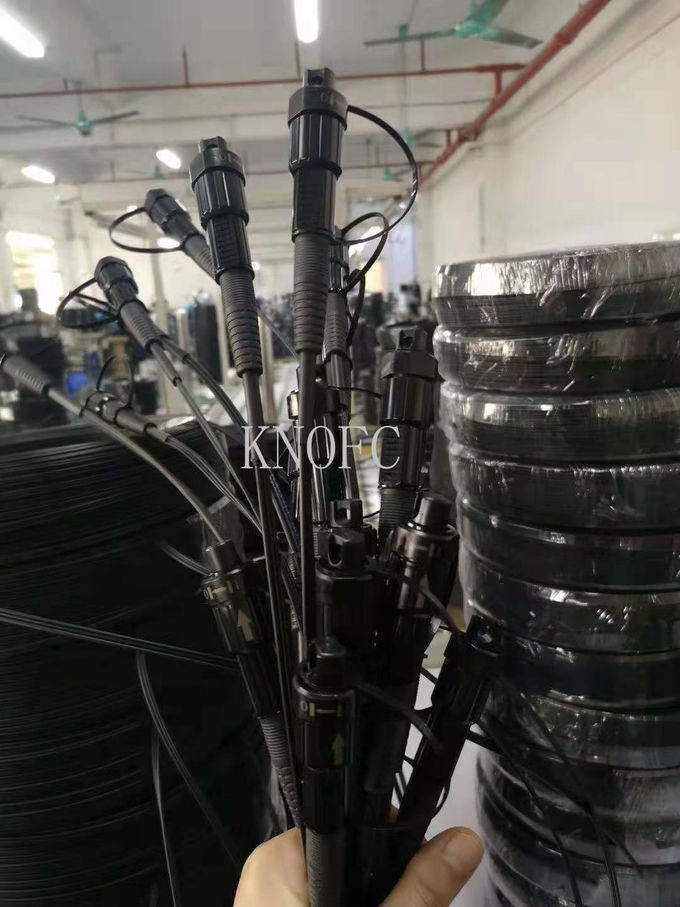

Grey Mini SC APC Drop Fiber Pigtail Fiber Optic Cable Assemblies 0


Connector technical data:

 Items Values
 Connector Type Huawei Mini SC
 Insertion Loss <0.3dB
 Return Loss >60dB


Cable technical data:

 Item Values
 Cable Type Outdoor Flat Drop Cable
 Sheath Material Grey LSZH
 Messenger Wire 1.2±0.02mm
 Steel Wire 0.5±0.02mm
 Fiber Type G657A1/G657A2
 Cable Diameter (2.0±0.1)x(5.0±0.2)mm


Cable Paremeters:

 Cable type Diameter(mm)  Weight
  Tensile strength
   Long/short term
  Bending radius
 Storage temperature
            ( ℃ )
 GJYXCH-1~4   2.0*5.0mm    22        300/600      20D/10D         -20~+70

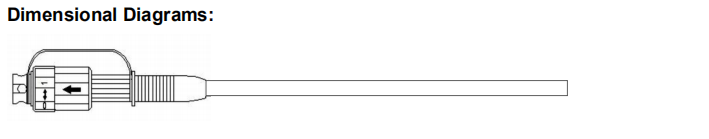

Grey Mini SC APC Drop Fiber Pigtail Fiber Optic Cable Assemblies 1

 Grey Mini SC APC Drop Fiber Pigtail Fiber Optic Cable Assemblies 2
