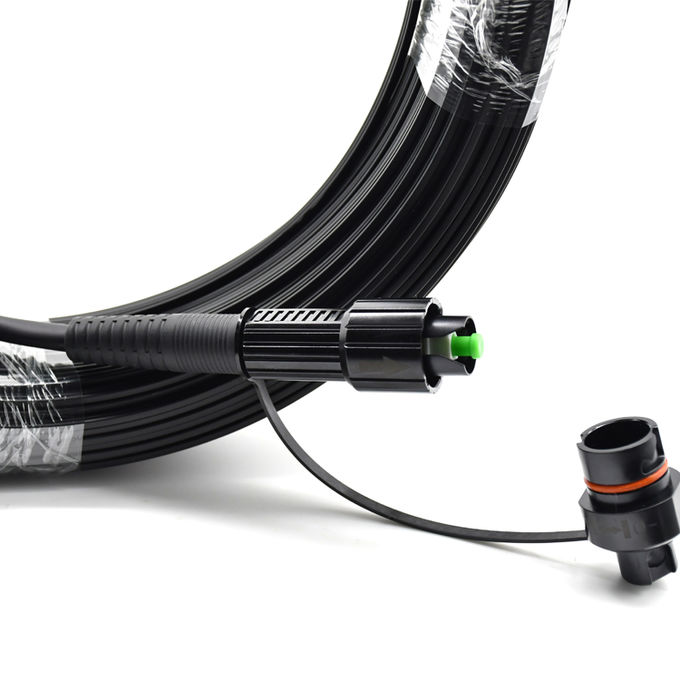

FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
  • FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
  • FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: Waterproof Mini SC Drop Cable Assembly Pigtail
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Individual box or customized
Supply Ability: 60000pcs/Month
Connector Type: Huawei Mini SC APC Cable Type: Round Cable Or Drop Cable
Length: 50M 100M 150M Application: HUAWEI CPRI
Fiber Type: G657A2 Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning / KNOFC
Jacket Material: HDPE / LSZH / TPU Operating Temperature: -40°C To+70°C
High Light: Pre Connectorized Drop Cable Pigtail, FTTH Drop Cable Pigtail, SC APC Optic Cable Pigtail

FTTH Outdoor Huawei Pre Connectorized Drop Cable Pigtail Mini SC



Huawei Compatible Mini SC pre-terminated Outdoor Flat drop cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.



  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
  • Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
  • Can be installs without special tooling.
  • Threaded style coupling.
  • Provides bend protection for installation and long term use.
  • Faster network roll out and customer installations.
  • 100% tested assemblies built in a controlled environment.
  • Lower cost deployment by utilizing plug and play solutions.
  • Custom built solutions with quick turnaround times.


  • Fiber optic communications in harsh outdoor environments.
  • Outdoor communication equipment connection.
  • Waterproof Fiber Equipment.
  • Remote wireless Base Station.
  • FTTx ISP Project.

Connector technical data:

 Items  Values
 Connector Type  Huawei Mini SC
 Insertion Loss  <0.3dB
 Return Loss  >60dB


Cable technical data:

 Item  Values
 Cable Type  Outdoor Flat Drop Cable
 Sheath Material  LSZH
 Messenger Wire  1.0±0.02mm
 Steel Wire  0.5±0.02mm
 Fiber Type  G657A1 / G657A2
 Cable Diameter  (2.0±0.1)x(5.0±0.2)mm


Cable Paremeters:

 Cable type  Diameter(mm)   Weight
  Tensile strength
   Long/short term
  Bending radius
 Storage temperature
            ( ℃ )
 GJYXCH-1~4    2.0*5.0mm     22         300/600       20D/10D          -20~+70
