Current location:Home   >>  Products   >>  Fiber Optic Jumper   >>  Fiber Optic Patch Cord

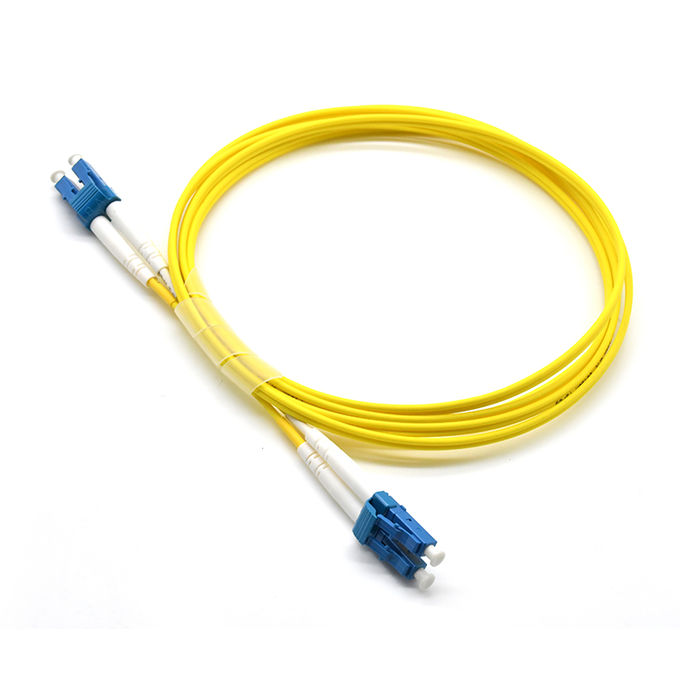

LC To LC Fibre Patch Cable SM LC-LC Multimode Duplex Fiber Jumper
<
  • LC To LC Fibre Patch Cable SM LC-LC Multimode Duplex Fiber Jumper
  • LC To LC Fibre Patch Cable SM LC-LC Multimode Duplex Fiber Jumper
>
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: Patch Cord LC/UPC
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: bag
Supply Ability: 10000pcs/Week
详情介绍
Fiber Type: Single Mode Fiber Count: 1C
Jacket Material: LSZH / PVC Length: 2M/3M/5M Or Customized
Connector Type: LC/UPC-LC/UPC Cable Diameter: 0.9mm/2.0mm/3.0mm
Insertion Loss: ≤0.3dB Operating Temperature: -20°C To+50°C
High Light: SM Multimode Duplex Fiber Jumper, LC To LC Fibre Patch Cable, LC LC Duplex Fiber Jumper

Fiber Optic Patch Cord SM LC-LC Mmltimode Duplex Optical Jumper



Description:

Fiber optic patch cord is becoming more popular for fiber installation project It is definitely an efficient and economical solution rather than on site termination or splicing. FC, SC, LC, ST connector are available SM or MM cables type Polishing: PC, UPC and APC Applicable to connect the cable.Fiber optic patch cord are used to connect to devices and are suitable for Gigabit Ethernet, multimedia, premise installations, fiber optics, Fiber optic transceiver panels and fiber optic network, industrial, and military applications. Connector function Dust plugs at the tips for protection.



Features:

  • Low insertion loss, high return loss.
  • Excellent mechanical endurance.
  • High credibility and stability.
  • Good in repeatability and exchangeability.

Appplication:

  • FTTH, PON.
  • Local Area Networks.
  • Local ring net.
  • Optical fiber communication system.
  • Optical fiber test equipment.
  • Optical fiber sensor.
  • Industry and military application.

Technical reference:

 Patch cord Connector  UPC (SM)  APC (SM)  UPC (MM)  APC(MM)
 Return Loss (dB)      ≥50       ≥60     ≥30  ≥30
 Insertion Loss (dB)  ≤0.2 (max≤0.3)
 Repeatability (dB)  ≤0.1
 Durability(1/Matings)  ≥500
 Operation Temperature (°C)  -20~+70
 Tensile Strength (N)  ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
 Fiber type  SM 9/125um, MM 50/125um,MM 62.5/125um,ect
 Diameter  0.9mm 2.0mm, 3.0mm etc
 Cable material  LSZH / PVC
 Cores  Simplex / Duplex



LC To LC Fibre Patch Cable SM LC-LC Multimode Duplex Fiber Jumper 0
