Non metal Loose Tube FRP Central Strength Member GYFTY Fiber Cable 72 Core
<
  • Non metal Loose Tube FRP Central Strength Member GYFTY Fiber Cable 72 Core
>
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYFTY 72 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 2-288 Core Strength Member: FRP
Protective Layer: Water Blocking Tape Outer Sheath Material: HDPE
Application: Aerial / Duct Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE

Non metal Loose Tube FRP Central Strength Member GYFTY Fiber Cable 72 Core



Description:

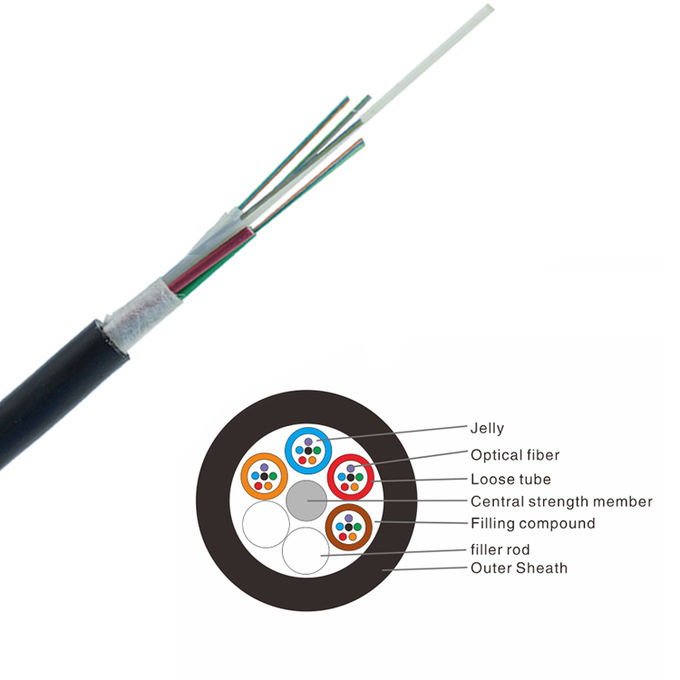

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress,,the cable is completed with a PE sheath.



Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight:
          a.Single Fiber Reinforced Plastic as the central strength member
          b. Loose tube filling compound
          c. 100% cable core filling



Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.



Optical Fiber Characteristic:

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km



Cable Mechanical characteristic:

Cable type Diameter  (mm) Weight  (kg/km) Tensile strength
Long/short term  (N)
Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static  (mm)
Storage temperature   ( ℃ )
GYFTY-2~60 9.0 85 600/1500 300/1000 20D/10D -20~+70
GYFTY-62~72 10 95
GYFTY-74~96 11 110
GYFTY-98~120 13 125
GYFTY-122~144 15 145
