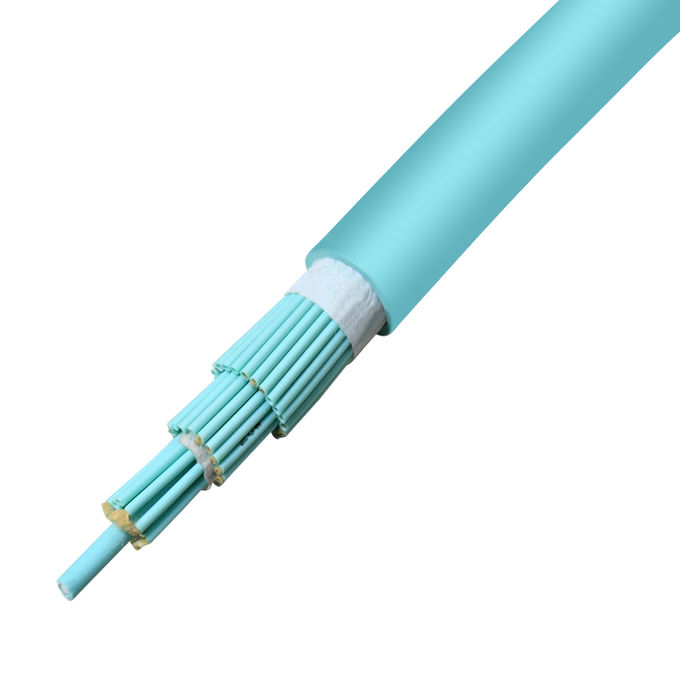

Breakout Om3 Multimode Fiber Cable Indoor Fiber Cable

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJBFJV
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200km/week

我要询价

详情介绍

Fiber Type:	OM2 50/125	Fiber Count:	2-48 Core
Jacket Material:	LSZH/PVC	Application:	Indoor Cabling And Distribution
Fiber Brand:	YOFC / Fiberhome / Corning / KNOFC	Life Expectancy:	More Than 30 Years
Operating Temperature:	-40°C To+70°C
High Light:	Breakout Om3 Multimode Fiber Cable, OEM Multimode Indoor Fiber Cable, Breakout Om3 Indoor Fiber Cable

OM3 Breakout Fiber Cable Multimode Indoor Optical Cable

Description:

GJBFJV Multi-core round tight buffered distribution indoor fiber optic cable with good mechanical and environmental characteristics. Flame retardant characteristic meet the rquirements of relevant standards. The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards. Soft, flexible and easy to do stripping, splicing and cabling.

Features:

Flexible, flame-retardant & color coded outer jacket.
Non-unitized designs provide space savings and cost advantages.
Work as pigtails and patch cords.
Optical communication cables for inside plant installations.
Sitable for indoor use, communication equipment.

Application:

Indoor cabling and distribution.
Interconnection of fiber optic equipments, especially ODF.
Used in patch cords and pigtails

Technical parameters:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJPFJV-4C	6.0	26.2	1000/3000	20D/10D	-20~+70
GJPFJV-6C	8.0	30.0	1000/3000	20D/10D	-20~+70
GJPFJV-8C	9.0	36.0	1000/3000	20D/10D	-20~+70
GJPFJV-12C	10.0	41.5	1000/3000	20D/10D	-20~+70

Main mechanical & environmental performance test:

Item	Test Method	Acceptance Condition
Tensile Strength IEC 794-1-2-E1	- Load: Short term tension - Length of cable: about 50m	- Fiber strain £ 0.15% - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage
Crush Test IEC 60794-1-2-E3	- Load: Short term crush - Load time: 1min	- Loss change £ 0.05dB@1550nm - No fiber break and no sheath damage.
Impact Test IEC 60794-1-2-E4	- Points of impact: 3 - Times of per point: 1 - Impact energy: 5J	- Loss change £ 0.1dB@1550nm - No fiber break and no sheath damage
Temperature Cycling Test YD/T901-2001-4.4.4.1	- Temperature step: +20℃→-40℃→+70℃ →+20℃ - Time per each step: 12 hrs - Number of cycle: 2	- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage.
