Fiber Optic Pigtail
Current location:Home   >>  Products   >>  Fiber Optic Jumper   >>  Fiber Optic Pigtail

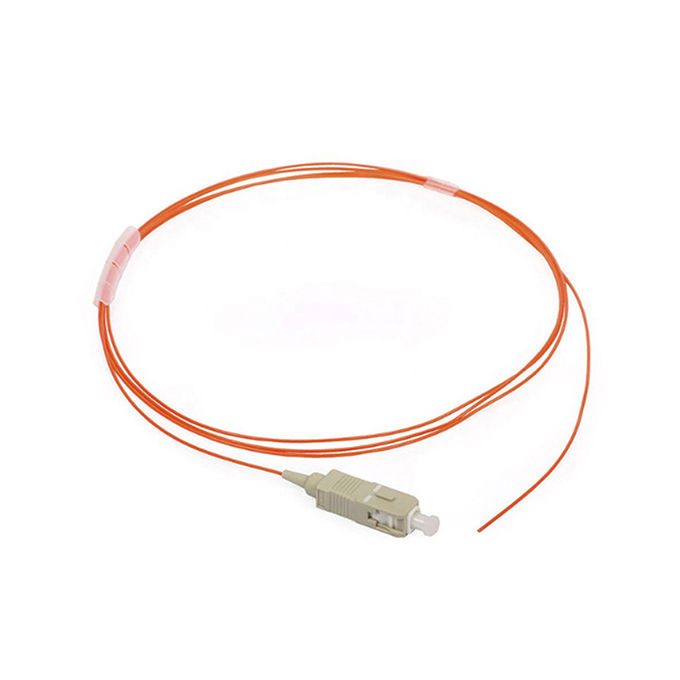

1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail
  • 1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail
  • 1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Pigtail SC/UPC
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: bag
Supply Ability: 20000pcs/Week
Fiber Type: Single Mode 9/125 Connector Type: SC/UPC
Length: 1M Or Customized Cable Color: White Or Yellow
Cable Diameter: 0.9mm Insertion Loss: ≤0.3dB
Operating Temperature: -20°C To+50°C
High Light: 0.9mm SC Multimode Fiber Pigtail, 0.9mm SC Fiber Optic Pigtail, Multimode 1M Fiber Optic Pigtail

Fiber Optic Pigtail SC/UPC 1M 0.9mm Singlemode Simplex



The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.



  • Good durability.
  • Good exchangeability.
  • High temperature stability.
  • Low insertion loss and back reflection loss.
  • Superior Quality Standard PC/UPC/APC Polishin.



  • FTTH, LAN, Test equipment, Military industry.
  • Outside plant.
  • Premise networks.
  • Aerial distribution.
  • Measuring equipments.
  • Fiber optic communication system.
  • Optical active component and equipment.


Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Loss (dB) ≤0.25dB ≤0.3dB
Return Loss (dB) ≥50dB(PC/UPC) ≥40dB(PC/UPC)
TIA/EIA-455-107 ≥60dB(APC)
Exchange-ability ≤0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature(℃) -30 ~ +70
Storage Temperature(℃) -40 ~ +85
Package 1 pieces/bag

1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail 0
