Fiber Optic Splice Closure
Current location:Home   >>  Products   >>  Fiber Optic Splitter   >>  Fiber Optic Splice Closure

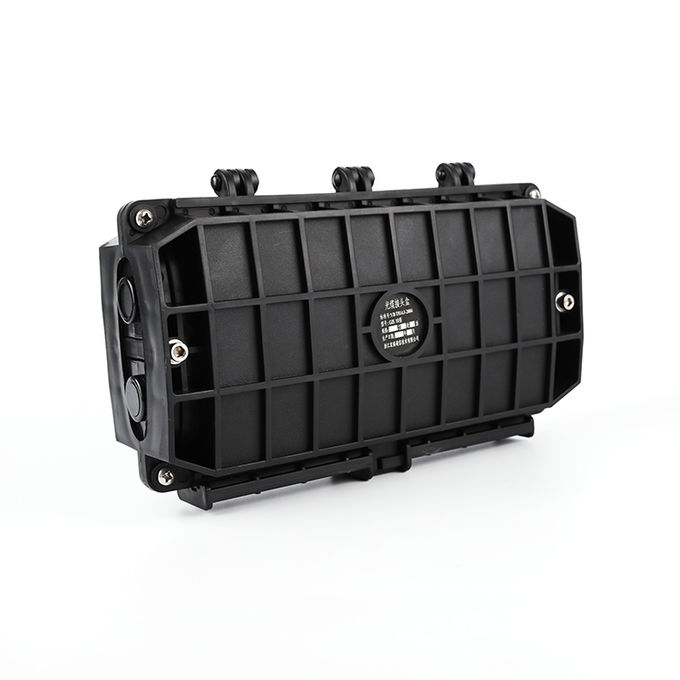

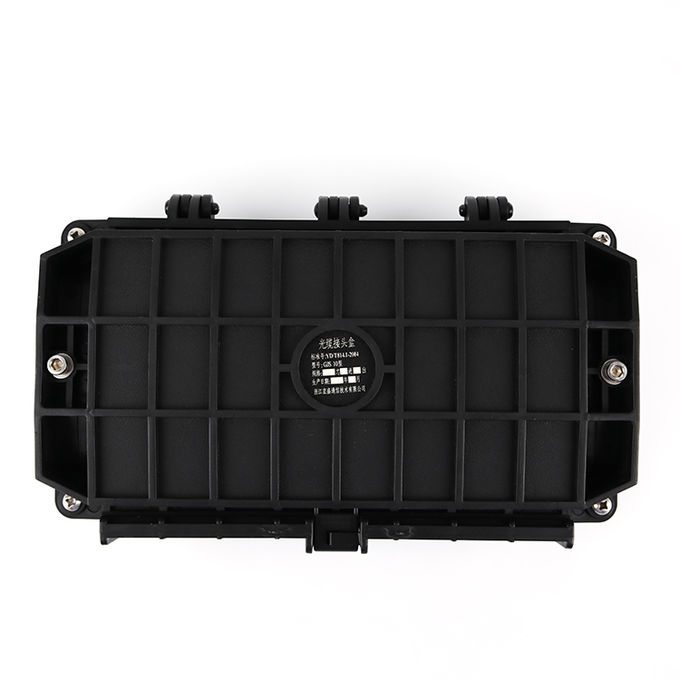

Optical Fiber Joint Box 48 Core Fiber Optic Cable Splice Closure
<
  • Optical Fiber Joint Box 48 Core Fiber Optic Cable Splice Closure
  • Optical Fiber Joint Box 48 Core Fiber Optic Cable Splice Closure
  • Optical Fiber Joint Box 48 Core Fiber Optic Cable Splice Closure
>
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Dome Joint Closure 48C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box
Supply Ability: 1000pcs/week
详情介绍
Size: 280*180*82 Mm Tray: 4 Trays, 12 Core Per Tray
Inlet & Outlet: 2 In 2 Out Installation Way: Aerial / Duct / Buried Mount
Sealing Way: Heat Shrink Sealing Type: Horizontal
Material: 100% PC
High Light: 48 Core Fiber Optic Cable Splice Closure, 48 Core Optical Fiber Joint Box, PC Fiber Optic Cable Splice Closure

48 Cores Fiber Optic Cable Splice Closure Fiber Optic Joint Splice Box



Description:

Dome Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, duct, or for pole mounting applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.



Features:

  • Slide-in-lock design, over 90 opening angle tray
  • Elastic integrated seal ensure tightening fit
  • Housing provide fire resistant, waterproof, and quakeproof for splices while handing
  • Operating Temperature: -40 ~ +65 °C



Application:

  • Sutable for bunchy fibers.
  • Aerial ,wall-mounting.
  • FTTH optical fiber distribution.



Specification:

Horizontal Type
Material Molded plastic (cover, splice tray, tray base, end plate, cable clamping)
Stainless steel (tension member clamp)
Synthetic rubber (cover gasket, valve gasket)
Dimension (mm): 280*180*82mm~515*215*123mm
Weight: 2.5~6.7kg
Cables Entry & Exit: 2Entry 2Exit,3Entry 3Exit,4Entry 4Exit,,8Entry 8Exit
Cable ports 8oval port for 8 main cables 8 round ports for 8 branch cables or drop/indoor cables
Splice tray capacity Max. 6 trays
Maximum fiber storage capacity Single fiber 144 fibers(24fibers/tray)
4-fiber ribbon 192 fibers(8ribbon/tray)



Optical Fiber Joint Box 48 Core Fiber Optic Cable Splice Closure 0
Optical Fiber Joint Box 48 Core Fiber Optic Cable Splice Closure 1

Optical Fiber Joint Box 48 Core Fiber Optic Cable Splice Closure 2
