Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: ADSS 24 core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Wooden Drum Supply Ability: 500000M/Week
|Product Name:||ADSS Fiber Cable 24 Core||Fiber Type:||Singlemode / Multimode|
|Fiber Count:||2-288cores||Jacket Material:||HDPE Or AT|
|Supporting Strength:||Aramid Yarn/Kevlar Yarn||Central Strength Member:||FRP|
|High Light:||All Dielectric Self Supporting Fiber Optic Cable, 120M Self Supporting Fiber Optic Cable, 120M 24 Core Fiber Optic Cable|

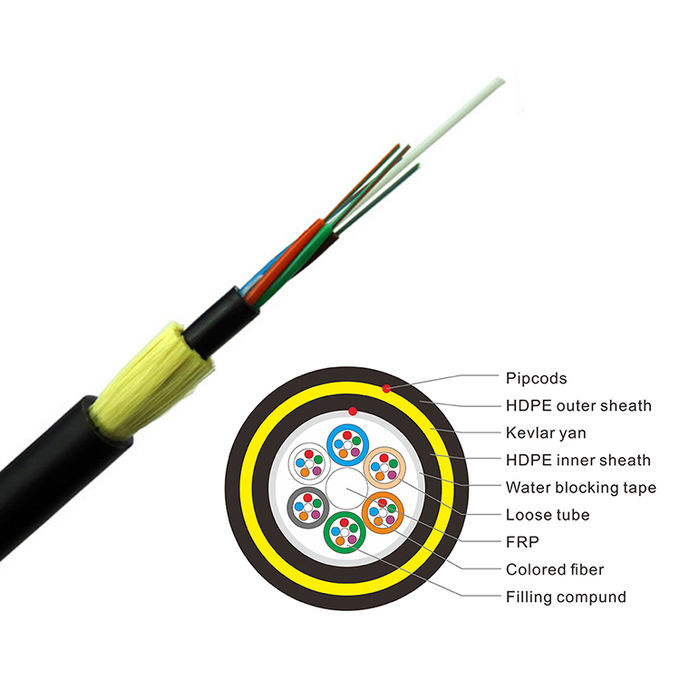

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) sheath.
|Attenuation||@850nm||≤3.0 dB/km||≤3.0 dB/km|
|@1300nm||≤1.0 dB/km||≤1.0 dB/km|
|@1310nm||≤0.36 dB/km||≤0.40 dB/km|
|Bandwidth||@850nm||≥500 MHz·km||≥200 MHz·km|
|@1300nm||≥1000 MHz·km||≥600 MHz·km|
|Cable Cut-off Wavelengthλcc||≤1260nm||≤1480nm|
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
( ℃ )
