Overhead Power Lines 24 Core G652D OPGW Fiber Cable
<
  • Overhead Power Lines 24 Core G652D OPGW Fiber Cable
  • Overhead Power Lines 24 Core G652D OPGW Fiber Cable
>
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: OPGW 24 core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Iron-wooden drum
Supply Ability: 100km/week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning / KNOFC
Fiber Count: 2-72 Core Strength Material: Aluminum
Application: Aerial Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C
High Light: Overhead G652D OPGW Fiber Cable, 24 Core OPGW Fiber Cable, OPGW G652D 24 Core Fiber Optic Cable

AlumaCore Optical Ground Wire OPGW Cable 24 Core Single Mode G652D Overhead Power Lines



Description:

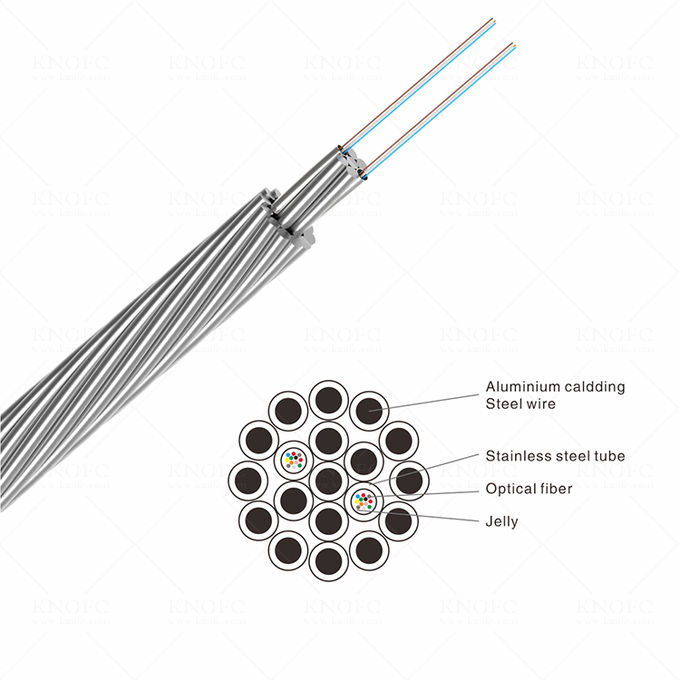

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer strandard cable. The multiple loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multiple loose tube type can meet the requirement of huge cross and large current capacity.



Features:

  • Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.
  • Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
  • Optical fibers are protected by stainless steel tubes.
  • Excellent security, good bullet resist performance.
  • ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.

Characteristic:

  • Stainless steel tubes filled with hydrophobic gel provide the protection and support of the optical fibres.
  • Accurate process control ensures good mechanical and temperature performances.
  • Larger diameter, larger fibre count.Stable structure and high reliability.
  • High tensile strength and large short time current capacity to reach optimum balance of mechanical and electrical properties.

Application:

Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.



Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm



Typical design for Double Layer of OPGW:


Product Type                                 Fiber Count           Diameter        Rate Tensile Strength     Short Time Current Capacity

                                                                                       (mm)                     (kN)                        (40-200℃ kA2.s)



OPGW-48B1.3-90- [112;45]                48                        13.2                        ≥112                              ≥45


OPGW-48B1.3-90- [57;67]                  48                        13.2                       ≥57                                ≥67



OPGW-24B1.3-100-[118;50]               24                         13.2                      ≥118                              ≥50



OPGW-24B1.3-100-[60;74]                 24                         13.2                      ≥60                                ≥74



OPGW-24B1.3-110-[133;63]               24                          14                        ≥133                              ≥63



OPGW-24B1.3-110-[140;68]               24                         14.3                      ≥140                              ≥68



OPGW-24B1.3-110-[67;95]                 24                         14.1                       ≥67                               ≥95



OPGW-36B1.3-120-[145;73]               36                         14.6                      ≥145                              ≥73



OPGW-36B1.3-120-[95;98]                 36                         14.6                      ≥95                                ≥98



OPGW-36B1.3-120-[74;110]               36                         14.6                      ≥74                                ≥110



OPGW-72B1.3-120-[147;76]               72                         15.2                      ≥147                              ≥76



OPGW-72B1.3-120-2[96;101]             72                         15.2                     ≥96                                ≥101



OPGW-72B1.3-120-[74;114]               72                         15.2                      ≥74                               ≥114



OPGW-36B1.3-130-[155;85]               36                         15.2                     ≥155                              ≥85



OPGW-36B1.3-130-[102;114]             36                         15.2                     ≥102                              ≥114



OPGW-36B1.3-130-[79;137]               36                         15.2                     ≥79                                ≥137



OPGW-36B1.3-140-[175;100]             36                         16.1                     ≥175                              ≥100



OPGW-36B1.3-140-[115;140]             36                         16.1                     ≥115                              ≥140



OPGW-36B1.3-145-[86;170]               36                         16.1                     ≥86                               ≥170



OPGW-48B1.3-150-[182;123]             48                         16.6                     ≥182                             ≥123



OPGW-48B1.3-150-[122;165]             48                         16.6                     ≥122                             ≥165



OPGW-48B1.3-150-[95;195]               48                         16.6                     ≥95                               ≥195



OPGW-72B1.3-150-[172;110]             72                         16.6                     ≥172                             ≥110



OPGW-72B1.3-150-[116;147]             72                         16.6                     ≥116                             ≥147



OPGW-48B1.3-170-[198;150]             48                         17.6                     ≥198                             ≥150



OPGW-72B1.3-170-[199;156]             72                         18.2                     ≥199                             ≥156



OPGW-48B1.3-180-[252;125]             48                         18.2                     ≥252                             ≥125



OPGW-48B1.3-180-[211;175]             48                         18.2                      ≥211                            ≥175



OPGW-48B1.3-180-[147;234]             48                         18.2                     ≥147                             ≥234



OPGW-48B1.3-180-[113,262]             48                         18.2                     ≥113                             ≥262



OPGW-48B1.3-235-[268;243.4]          48                         20.3                     ≥268                            ≥243.4
