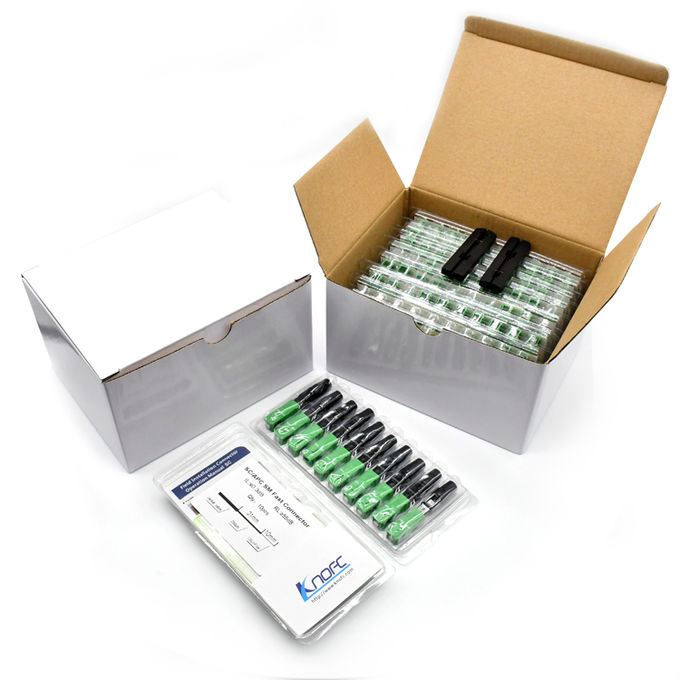

Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Fast Connector SC/APC Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: Plastic boxes Supply Ability: 50000pcs/week
| Fiber Type: | Singlemode | Fiber Cable Type: | 3x2.0mm Ftth Drop Cable |
| Insertion Loss: | ≤ 0.25dB | Return Loss: | ≥50dB |
| Application: | FTTH,LAN,PON&Optical CATV | Operating Temperature: | -30°C To+60°C |
| High Light: | FTTH Field Assembly Optical Connector, SC APC Field Assembly Optical Connector, FTTH SC APC Fast Connector | ||
Fiber Optic SC APC Fast Connector FTTH Field Quick Assembly
Description:
The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.
Features:
1.Reliable and superior optical performance.
2.Using corning fiber.
3.Imported Brand matching gel(FIS).
4.Print manufacturer name on fast connector body.
5.Easy for assembling with mechanical splice and no polishing.
6.Lock and open the structure to make sure optical fiber, flexible, easy to use.
7.Operating Wavelength: 1310nm, 1490nm, 1510nm.
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9.Analysis 3D ferrule (3D geometry test)
Optical Characteristic:
| Items | Specification |
| Application | Drop cable.Indoor cable |
| Fiber mode | Single mode or Multi mode |
| Fiber type | G.652D, G.657A1 |
| Fiber cable | 3.0*2.0mmrubber-insulated optical cable ∅3.0/∅2.0 /∅0.9 insulated optical cable |
| Fiber diameter | 0.125mm |
| Force holds 2 x 3mm cable type at the beginning of the fast connector | ≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes) |
| Fiber lock | Lock holds fiber reliability, bears hang force ≥ 3.0 N, attenuation changes ≤ 0.2 dB. |
| Working wavelength | 1310 nm, 1490 nm, 1550 nm |
| Operation time | About 50S (no fiber cut) |
| Insertion loss | ≤0.3dB |
| Insertion Loss Typical value | 0.3dB |
| Return Loss | UPC≥45,APC≥55 |
| Fastening strength of naked fiber | ≥3N |
| Tensile strength | ≥40N |
| Reusable | ≥10 times |
| Operating Temperature | -40～+85℃ |
| On-line tensile strength(20N) | ΔIL≤0.3dB |
| Mechanical durability (500 times) | ΔIL≤0.3dB |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | ΔIL≤0.3dB |

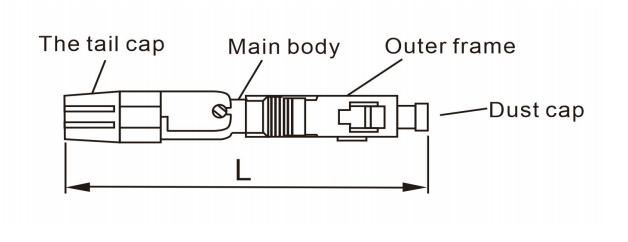

Measured the Structure:
