Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: GJYXCH 1 Core Minimum Order Quantity: 10km Price: Negotiable Packaging Details: Wooden reel with box Delivery Time: 8-10 working days Supply Ability: 2000000M/Week
| Fiber Count: | 1, 2, 4 Core | Fiber Type: | G657A2 |
| Strengthened Messenger Wire: | Galvanized Steel Wire | Outer Sheath Material: | LSZH - Low Smoke Zero Halogen |

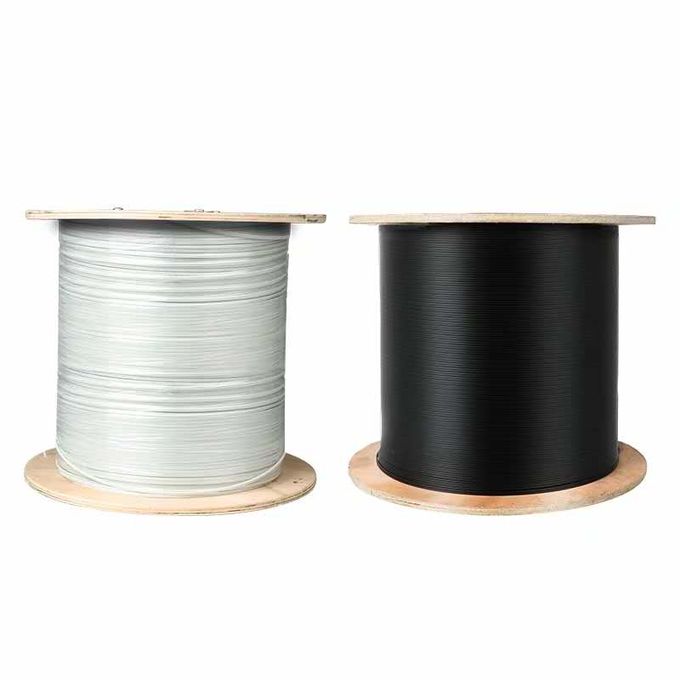

| Packaging: | Wooden Reel With Box | Application: | FTTH |
| Life Expectancy: | More Than 30 Years | Operating Temperature: | -40°C To+70°C |
| High Light: | 1 Core FTTH Drop Cable, 1 Core G657A FTTH Drop Cable, G657A Self Supporting Fiber Optic Cable | ||
Outdoor Self-supporting Drop Cable 1 Core G657A Fiber LSZH Jacket
Description:
FTTH Drop Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.
Characteristics:
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Simple structure, light weight and high practicability;
3. Low smoke, zero halogen and flame retardant sheath.
Application:
1. Adopted to outdoor distribution;
2. Suitable for aerial, pipeline laying method;
3. As FTTH cable,for outdoor horizontal and vertical cabling.
Technical Data:
| Item | Contents | Value |
| Central strength member | Material | FRP / KFRP / steel wire |
| Central strength member | Diameter | 0.5mm*2+1.0mm |
| Outer sheath | Material | LSZH |
| Outer sheath | Thickness | 0.5mm~0.8mm |
Cable Mechanical characteristic:
| Cable type | Diameter(mm) |
Weight (kg/km) |
Tensile strength Long/short term (N) |
Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GJYXCH-1~2 | 2.0*5.0 | 22 | 300/600 | 20D/10D | -20~+70 |
| GJYXCH-2~4 | 2.0*5.0 | 19 | 300/600 | 20D/10D | -20~+70 |
Mechanical requirements and methods of fiber cable:
| Tensile strength | 10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33% |
| Crush | 2200N/100mm, conform to IEC 794-1-E3 |
| Impact | Conform to IEC 794-1-E4 |
| Repeated bending | Conform to IEC 794-1-E6 |
| Torsion | Conform to IEC 794-1-E7 |
| Flexing | Conform to IEC 794-1-E8 |
| Kink | Conform to IEC 794-1-E10 |
| Cable bend | Conform to IEC 794-1-E11 |
| Vibration | Conform to IEC 794-1 |
| Water penetration | Conform to IEC 794-1-F5B |
| Abrasion | Conform to IEC 794-1-E2 |
| Temperature cycling test | Conform to IEC 794-1-F1 |
| Dielectric strength of outer jacket | Conform to ITU-T Rec.K25 |
