Singel Mode Cabo fibra Optica 12 fO ASU80 Fiber Optic Cable For Span 80m
  • Singel Mode Cabo fibra Optica 12 fO ASU80 Fiber Optic Cable For Span 80m
  • Singel Mode Cabo fibra Optica 12 fO ASU80 Fiber Optic Cable For Span 80m
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: ASU80 12 FO
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning / KNOFC
Fiber Count: 2-24 Core Strength Member: 2*FRP
Protective Layer: Water Blocking Tape Outer Sheath Material: HDPE
Application: Aerial / Duct Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE

Singel Mode Cabo Fibra Optica 12 FO ASU80 Fiber Optic Cable For Span 80m

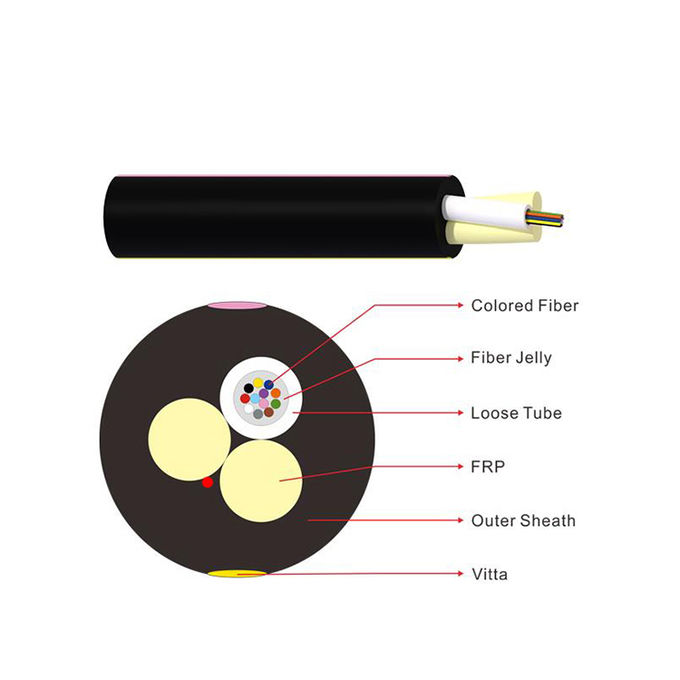

The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.



· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· PE/LSZH sheath protects cable from ultraviolet radiation.
· Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Light weight and small size convenient to laying.



1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.


Optical Fiber Characteristic:

 G.652.D  G.655  50/125μm  62.5/125μm
 Attenuation  @850nm  ≤3.0 dB/km  ≤3.0 dB/km
 @1300nm  ≤1.0 dB/km  ≤1.0 dB/km
 @1310nm  ≤0.36 dB/km  ≤0.40 dB/km
 @1550nm  ≤0.22 dB/km  ≤0.23dB/km
 Bandwidth  @850nm  ≥500 MHz·km  ≥200 MHz·km
 @1300nm  ≥1000 MHz·km  ≥600 MHz·km
 Numerical Aperture  0.200±0.015NA  0.275±0.015NA
 Cable Cut-off Wavelengthλcc  ≤1260nm  ≤1480nm


Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)
Storage temperature    ( ℃ )
ASU80-2~24 8 70 600/1500 300/1000 20D/10D -20~+70


Singel Mode Cabo fibra Optica 12 fO ASU80 Fiber Optic Cable For Span 80m 0
