Wall Mounted 1x16 Cores FTTH Fiber Splitter Distribution Box

Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Distribution Box 16 C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: box
Supply Ability: 1000pcs/week

我要询价

详情介绍

Fiber Count:	16Core	Material:	ABS New Material
IP Grade:	IP65	PLC Splitter:	1x8 1x16
Installation Way:	Pole Mount Or Wall Mount	Ports:	2 Cable Ports+16 Drop Cable Ports
Size:	300x230x87mm	Application:	FTTX Network
High Light:	1x16 Fiber Splitter Distribution Box, FTTH Fiber Splitter Distribution Box, 1x16 Ftth Splitter Box

FTTH Optical Splitter Box Outdoor wall-mounted Nap Box 1x16 cores Terminal Box

Description:

Fiber Optic Distribution Box can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:

1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.

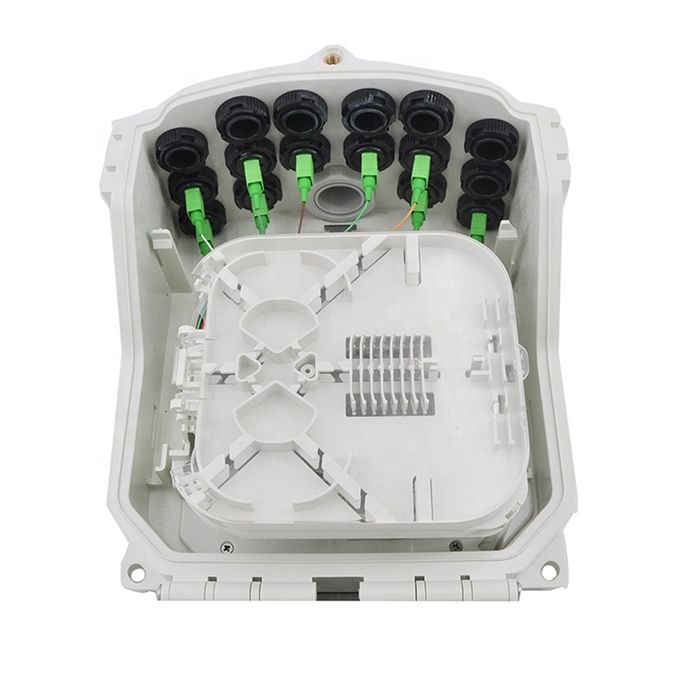

6. Space saving! Double-layer design for easier installation and maintenances.
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps.
12. Lock provided for extra security.
