Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: Mini SC/APC Drop Cable Pigtail Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: plastic bag or wooden reel Supply Ability: 5000pcs/Week
| Fiber Type: | G652D Or As Your Request | Fiber Brand: | YOFC / Fiberhome / Corning |
| Connector Type: | Huawei Mini SC/APC | Cable Type: | Drop Cable / Round Cable |
| Cable OD: | 5.0mm*2.0mm / 5.0mm | Jacket Material: | HDPE / LSZH / TPU |
| Application: | FTTX | Cable Length: | 100M Or As Your Request |
| Life Expectancy: | More Than 30 Years | Operating Temperature: | -40°C To+70°C |
| High Light: | Mini SC APC Patch Cord, Waterproof SC APC Patch Cord, Waterproof Mini SC Connector | ||

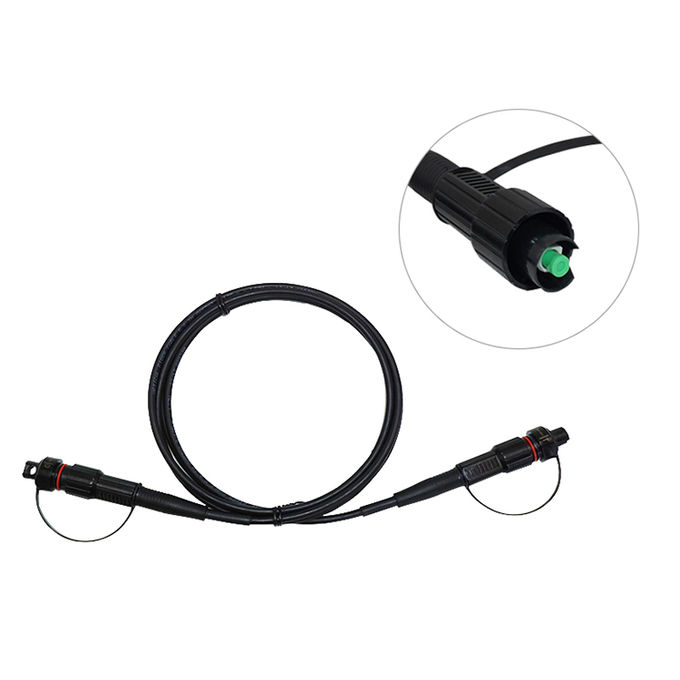

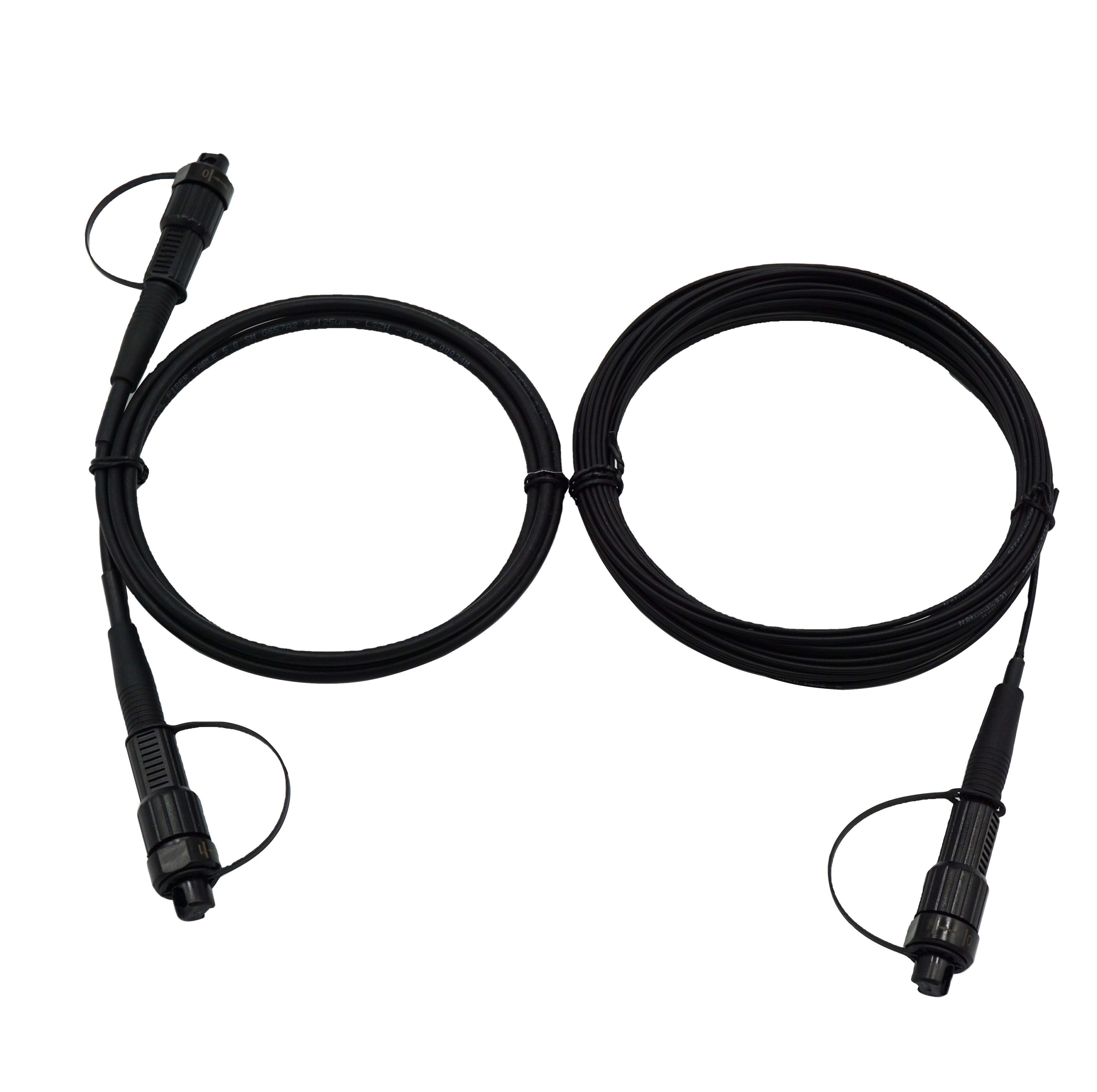

Round Cable Plus Waterproof Connector Mini SC APC Patch Cord
Descrition:
Huawei Compatible Mini SC pre-terminated OSP 5.0mm Outdoor fiber round cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.
Features:
1. Provides superior weather resistance for FTTA and other outdoor applications.
2. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
3. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
4. Can be installs without special tooling.
5. Threaded style coupling.
6. Provides bend protection for installation and long term use.
7. Faster network roll out and customer installations.
8. 100% tested assemblies built in a controlled environment.
9. Lower cost deployment by utilizing plug and play solutions.
10. Custom built solutions with quick turnaround times.
Connector Technical Data:
| Type | Reference | Note | ||
| SC | IEC 61754-4 | Single mode Simplex | APC: Green connectors | |
| Item | Values | |||
| Connector Type | Huawei Mini SC/APC | |||
| Insertion Loss | <0.3dB | |||
| Return Loss | >60dB | |||
Cable Technical Data:
| Item | Values | |||
| Cable Type | Outdoor Flat Drop Cable | |||
| Sheath Material | LSZH | |||
| Messenger Wire | 1.2±0.02mm | |||
| Steel Wire | 0.5±0.02mm | |||
| Fiber Type | G657A1/G657A2 | |||
| Cable Diameter | (2.0±0.1)x(5.0±0.2)mm | |||
Cable Paremeters:
| Cable count | Diameter (mm) | Weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) |
Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| Round cable 1C | 5.0mm | 32 | 300/600 | 1000/2200 | 20D/10D | -40~+70 |
Application:
1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communication equipment connection.
3. Waterproof Fiber Equipment.
4. Remote wireless Base Station.
5. FTTx ISP Project.
